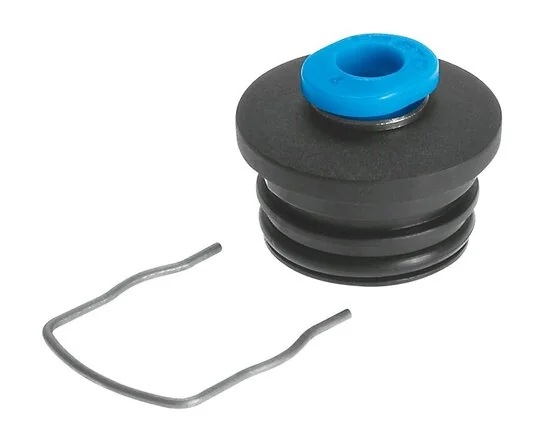

Festo - QSPK18-4-130839 - Cartridge

SKU: festo-qspk18-4-130839

Festo - QSPK18-4-130839 - Cartridge

€5.28€4.51 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€5.28

Brand
Festo
Size
Mini
Design
straight shape
Packing Size
10
Material Note
RoHs compliant
Sleeve Colour
blue
Fastening Type
Befestigungsnadel
Sleeve Material
POM
Housing Material
PA reinforced
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Seal Type On Stud
O-ring
Nominal Width (mm)
2,3
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Cartridge 18 mm
Pneumatic Connection 2
für Schlauch Außen-Ø 4 mm
Hose Plug-in Depth (mm)
11,6
Ambient Temperature (°C)
-5 to 60
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Note On Operating And Control Medium
Oiled operation possible
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568025595
Manufacturer
Festo
