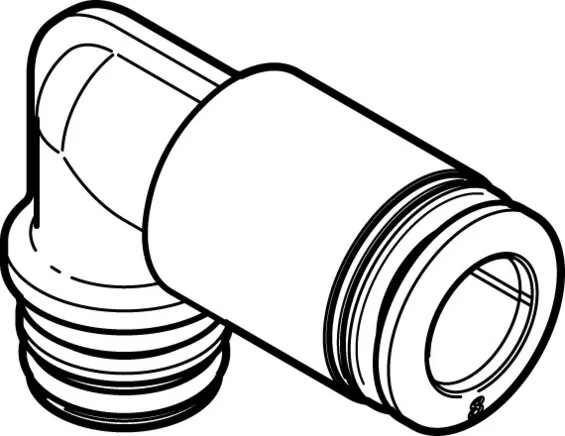

Festo - QSPLKG14-8-132939 - Cartridge

SKU: festo-qsplkg14-8-132939

Festo - QSPLKG14-8-132939 - Cartridge

€6.68€5.71 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€6.68

Brand
Festo
Size
Standard
Design
L-Form
Packing Size
10
Material Note
RoHs compliant
Sleeve Colour
blue
Fastening Type
Befestigungsnadel
Sleeve Material
POM
Housing Material
PA reinforced
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Seal Type On Stud
O-ring
Nominal Width (mm)
4,8
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Cartridge 14 mm
Pneumatic Connection 2
für Schlauch Außen-Ø 8 mm
Hose Plug-in Depth (mm)
18,1
Ambient Temperature (°C)
-5 to 60
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Note On Operating And Control Medium
Oiled operation possible
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568028718
Manufacturer
Festo
