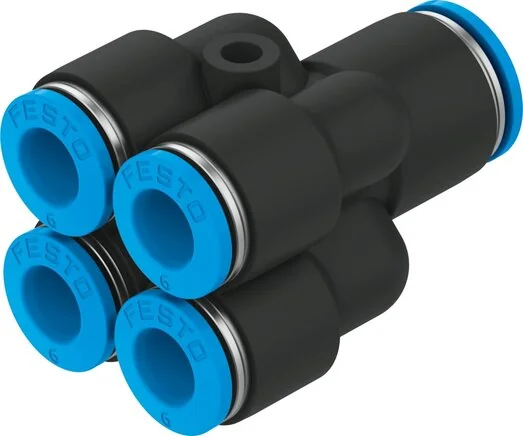

Festo - QSQ-1/4T-5/32-U-153815 - Multiple Distributor

SKU: festo-qsq-1-4t-5-32-u-153815

Festo - QSQ-1/4T-5/32-U-153815 - Multiple Distributor

€13.34€11.40 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€13.34

Brand
Festo
Size
Standard
Packing Size
1
Material Note
RoHs compliant
Sleeve Colour
Grey
Sleeve Material
POM
Housing Material
PBT
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Number Of Outlets
4
Nominal Width (mm)
3,1
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Number Of Supply Lines
1
Pneumatic Connection 1
"für Schlauch Außen-Ø 1/4"""
Pneumatic Connection 2
"für Schlauch Außen-Ø 5/32"""
Maritime Classification
see Certificate
Ambient Temperature (°C)
-10 to 60
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Note On Operating And Control Medium
Oiled operation possible
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568310912
Manufacturer
Festo
