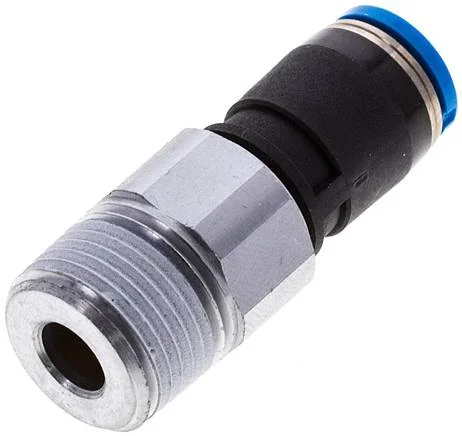

Festo - QSR-3/8-8-153406 - Rotary Push-In Fitting

SKU: festo-qsr-3-8-8-153406

Festo - QSR-3/8-8-153406 - Rotary Push-In Fitting

€40.61€34.71 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€40.61

Brand
Festo
Size
Standard
Design
straight shape
Max. Speed
400
Packing Size
1
Material Note
RoHs compliant
Sleeve Colour
blue
Stud Material
Nickel-plated brass
Fastening Type
Außensechskant SW17
Sleeve Material
POM
Housing Material
PBT
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Seal Type On Stud
coating
Nominal Width (mm)
5
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Male thread R3/8
Pneumatic Connection 2
für Schlauch Außen-Ø 8 mm
Hose Plug-in Depth (mm)
18,9
Max. Radial Torque (Nm)
0,015
Ambient Temperature (°C)
0 to 60
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Nominal Tightening Torque (Nm)
15,5
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 20 %
Temperature Depending Operating Pressure (MPa)
-0,095 to 1,4
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 0,6
EAN
4052568070571
Manufacturer
Festo
