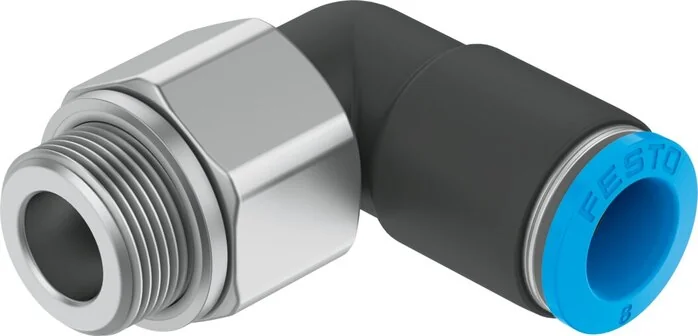

Festo - QSRL-G1/8-4-186285 - L Rotary Push-In Fitting

SKU: festo-qsrl-g1-8-4-186285

Festo - QSRL-G1/8-4-186285 - L Rotary Push-In Fitting

€31.20€26.67 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€31.20

Brand
Festo
Size
Standard
Design
L-Form
Max. Speed
500
Packing Size
1
Material Note
RoHs compliant
Sleeve Colour
blue
Stud Material
Nickel-plated brass
Fastening Type
Außensechskant SW13
Sleeve Material
POM
Housing Material
PBT
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Seal Type On Stud
gasket
Nominal Width (mm)
1,9
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Male thread G1/8
Pneumatic Connection 2
für Schlauch Außen-Ø 4 mm
Hose Plug-in Depth (mm)
14,9
Max. Radial Torque (Nm)
0,006
Ambient Temperature (°C)
0 to 60
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Nominal Tightening Torque (Nm)
5,4
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 20 %
Temperature Depending Operating Pressure (MPa)
-0,095 to 1,4
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 0,6
EAN
4052568040772
Manufacturer
Festo
