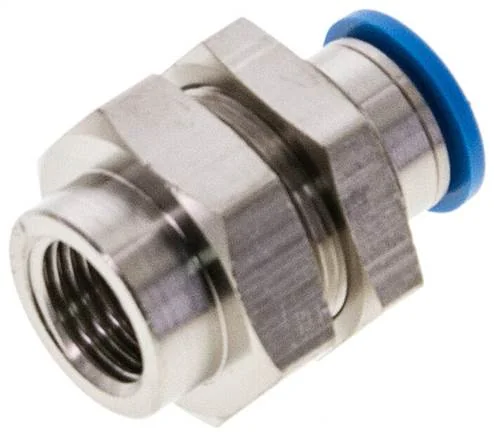

Festo - QSSF-1/4-10-B-153168 - Bulkhead Push-In Fitting

SKU: festo-qssf-1-4-10-b-153168

Festo - QSSF-1/4-10-B-153168 - Bulkhead Push-In Fitting

€14.60€12.48 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€14.60

Brand
Festo
Size
Standard
Design
Schott
Nut Material
Nickel-plated brass
Packing Size
10
Material Note
RoHs compliant
Sleeve Colour
blue
Fastening Type
Außensechskant SW24
Sleeve Material
POM
Housing Material
brass, nickel-plated
Operating Medium
Wasser (flüssig, eisfrei)
Nominal Width (mm)
9
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
female thread G1/4
Pneumatic Connection 2
für Schlauch Außen-Ø 10 mm
Hose Plug-in Depth (mm)
20,7
Ambient Temperature (°C)
80
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Nominal Tightening Torque (Nm)
9
Information About Operating Pressure
Wasser: max. 0,6 MPa bei max. 50 °C
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 20 %
Temperature Depending Operating Pressure (MPa)
-0,095 to 1,4
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 0,6
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568032531
Manufacturer
Festo
