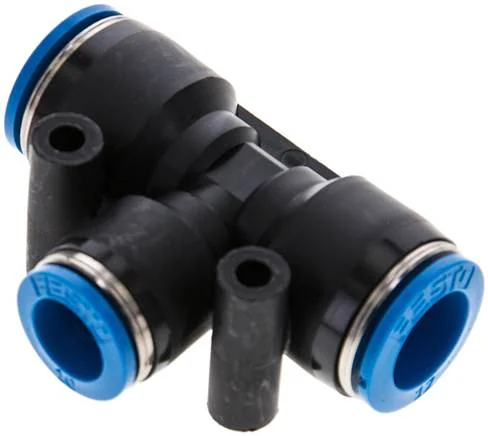

Festo - QST-12-10-153137 - T Push-In Fitting

SKU: festo-qst-12-10-153137

Browse all parts
Festo - QST-12-10-153137 - T Push-In Fitting

€14.06€12.02 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€14.06

Brand
Festo
Size
Standard
Design
T-shape
Packing Size
10
Material Note
RoHs compliant
Sleeve Colour
blue
Sleeve Material
POM
Housing Material
PBT
Operating Medium
Wasser (flüssig, eisfrei)
Number Of Outlets
2
Nominal Width (mm)
6,1
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Number Of Supply Lines
1
Pneumatic Connection 1
für Schlauch Außen-Ø 12 mm
Pneumatic Connection 2
für Schlauch Außen-Ø 10 mm
Hose Plug-in Depth (mm)
20,2 to 23,4
Ambient Temperature (°C)
-10 to 80
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Note On The Tubing Insertion Depth
Ø12 Tiefe 23,4 mm
Information About Operating Pressure
Wasser: max. 0,6 MPa bei max. 50 °C
Note On Operating And Control Medium
Oiled operation possible
Temperature Depending Operating Pressure (MPa)
-0,095 to 1,4
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 0,6
EAN
4052568032296
Manufacturer
Festo
