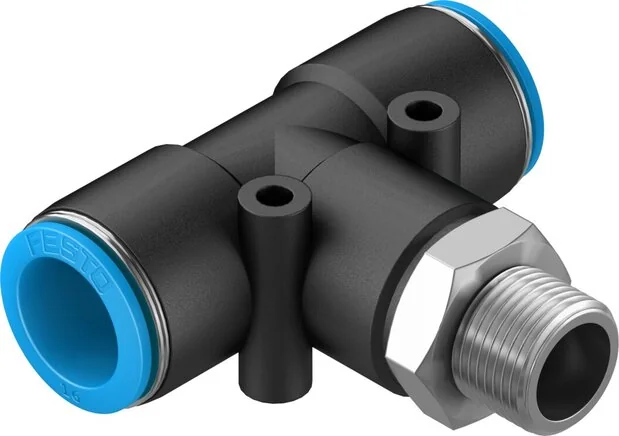

Festo - QST-3/8-16-164959 - T Fitting

SKU: festo-qst-3-8-16-164959

Browse all parts
Festo - QST-3/8-16-164959 - T Fitting

€39.41€33.68 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€39.41

Brand
Festo
Size
Standard
Design
T-shape
Packing Size
1
Material Note
RoHs compliant
Sleeve Colour
blue
Stud Material
Nickel-plated brass
Fastening Type
Außensechskant SW22
Sleeve Material
POM
Housing Material
PBT
Operating Medium
Wasser (flüssig, eisfrei)
Number Of Outlets
2
Seal Type On Stud
coating
Nominal Width (mm)
11
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Number Of Supply Lines
1
Pneumatic Connection 1
Male thread R3/8
Pneumatic Connection 2
für Schlauch Außen-Ø 16 mm
Hose Plug-in Depth (mm)
24,1
Ambient Temperature (°C)
-10 to 80
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Information About Operating Pressure
Wasser: max. 0,6 MPa bei max. 50 °C
Note On Operating And Control Medium
Oiled operation possible
Temperature Depending Operating Pressure (MPa)
-0,095 to 1,4
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 0,6
EAN
4052568073534
Manufacturer
Festo

Be the first to write a review!

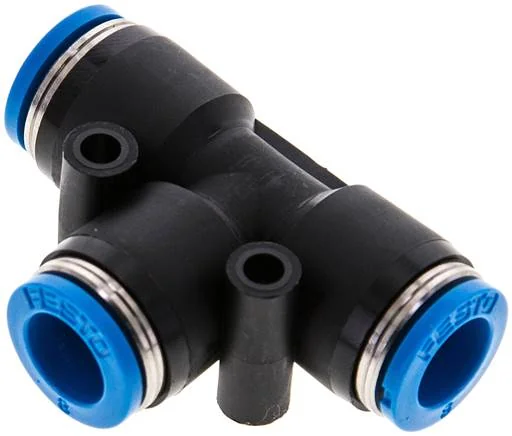

Similar items you might like
