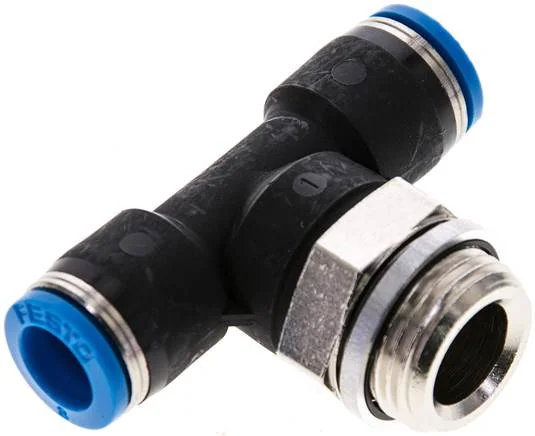

Festo - QST-G3/8-8-186162 - T Fitting

€14.02€11.98 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€14.02

Brand
Festo
Size
Standard
Design
T-shape
Packing Size
10
Material Note
RoHs compliant
Sleeve Colour
blue
Stud Material
Nickel-plated brass
Fastening Type
Außensechskant SW19
Sleeve Material
POM
Housing Material
PBT
Operating Medium
Wasser (flüssig, eisfrei)
Number Of Outlets
2
Seal Type On Stud
gasket
Nominal Width (mm)
6,7
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Number Of Supply Lines
1
Pneumatic Connection 1
Male thread G3/8
Pneumatic Connection 2
für Schlauch Außen-Ø 8 mm
Hose Plug-in Depth (mm)
18,1
Ambient Temperature (°C)
80
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Information About Operating Pressure
Wasser: max. 0,6 MPa bei max. 50 °C
Note On Operating And Control Medium
Wasser: G-Gewinde nur möglich mit Dichtring Typ OL als zusätzlichem Zubehör
Tolerance To Nominal Tightening Torque
± 20 %
Temperature Depending Operating Pressure (MPa)
-0,095 to 1,4
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 0,6
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568039660
Manufacturer
Festo
