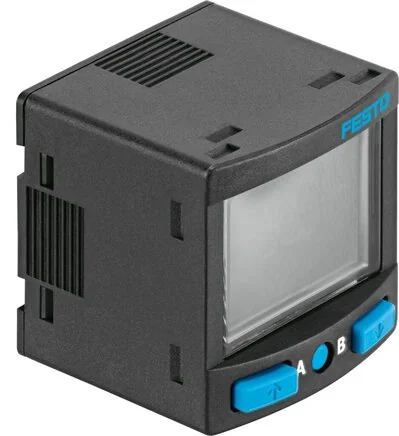

Festo - SCDN-2V-EC4-PNLK-L1-8035555 - Signal Converter

SKU: festo-scdn-2v-ec4-pnlk-l1-8035555

Festo - SCDN-2V-EC4-PNLK-L1-8035555 - Signal Converter

€144.67€123.65 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€144.67

Brand
Festo
Report
IO-Link
Permission
c UL us - Listed (OL)
Display Type
Illuminating LCD Multiple
Signal Range
0 - 10 V
Material Note
RoHs compliant
Control Output
2 x PNP or 2 x NPN switchable
Fastening Type
With Wall / flat holder
Setting Options
Via display and buttons
Switch Function
Freely programmable
Housing Material
PA reinforced
IO-Link, Profile
Smart sensor profile
Tamper-proof Fuse
PIN code
Certification Body
UL E322346
Measured Parameter
Voltage
Accuracy In ± % FS
0,5
IO-Link, Port Class
A
Protection Category
IP40
LABS (PWIS) Conformity
VDMA24364-B2-L
Repeatability In ± %FS
0,2
Max. Output Current (mA)
100
Short Circuit Resistance
yes
Ambient Temperature (°C)
0 to 50
IO-Link, Function Classes
Teach channel
IO-Link, Protocol Version
Device V 1.1
IO-Link, SIO Mode Support
yes
Switching Element Function
Opener/closer switchable
IO-Link, Communication Mode
COM2 (38.4 kBaud)
IO-Link, Data Memory Needed
500
Reverse Polarity Protection
for all electrical connections
Sampling Interval Type (ms)
1
Corrosion Resistance Class KBK
2 - moderate corrosion stress
IO-Link, Process Data Width IN
5 Bytes
Operating Voltage Range DC (V)
15 to 30
IO-Link, Process Data Width OUT
0 Bytes
IO-Link, Minimum Cycle Time (ms)
5
IO-Link, Process Data Contents IN
2 bit BDC (Messwertüberwachung)
Electrical Connection 1, Connection Type
Plug
Electrical Connection 2, Connection Type
2x socket
Electrical Connection 1, Connection Pattern
995428
Electrical Connection 2, Connection Pattern
995750
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Wiring diagram L1J
Electrical Connection 2, Connection Technology
Wiring diagram EC
Electrical Connection 1, Number Of Pins / Wires
4
Electrical Connection 2, Number Of Pins / Wires
4
EAN
4052568284954
Manufacturer
Festo
