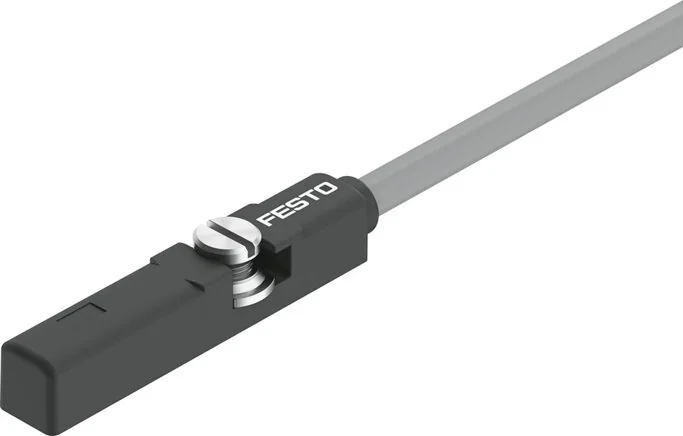

Festo - SDBT-MSB-1L-NU-K-2-LE-8150172 - Proximity Switch

SKU: festo-sdbt-msb-1l-nu-k-2-le-8150172

Browse all parts
Festo - SDBT-MSB-1L-NU-K-2-LE-8150172 - Proximity Switch

€39.78€34.00 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€39.78

Brand
Festo
Design
For T-slot
KC-mark
KC-EMV
Wire Ends
Cut dull
Permission
RCM mark
Material Note
kupferfrei
Control Output
NPN
Fastening Type
Insertable from above into the slot
Line Properties
energiekettentauglich
Cable Length (m)
2
Housing Material
PC
Special Features
Oil resistant
Voltage Drop (V)
0,5
Measured Parameter
Position
Overload Resistant
no
Repeatability (mm)
0,2
Protection Category
acc. to IEC 60529
Screw Lock Material
High-alloyed stainless steels
Switch On Time (ms)
2,5
Complies To Standard
EN 60947-5-2
Switch Off Time (ms)
2,5
Cable Sleeve Material
PUR
Installation Position
arbitrary
Measurement Principle
Magnetoresistive
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Output Current (mA)
100
Short Circuit Resistance
no
Ambient Temperature (°C)
-20 to 70
Insulation Sleeve Material
PP
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Connection Outlet Direction
along
Max. Tightening Torque (Nm)
0,3
Reverse Polarity Protection
for all electrical connections
Max. Switching Frequency (Hz)
480
Max. Switching Capacity DC (W)
3
Operating Voltage Range DC (V)
10 to 30
Rated Operating Voltage DC (V)
24
Electrical Connection 1, Connection Type
cable
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
3
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Ambient Temperature For Moving Cable Placements (°C)
-20 to 70
Cleanroom Suitability, Measured According To ISO 14644-14
Statisch installiertes Element, keine sinnvolle Bewertung möglich nach ISO 14644-1
EAN
4052568580117
Manufacturer
Festo
