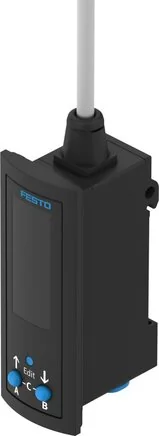

Festo - SDE3-D10S-B-FQ4-2P-M8-540208 - Pressure Sensor

SKU: festo-sde3-d10s-b-fq4-2p-m8-540208

Browse all parts
Festo - SDE3-D10S-B-FQ4-2P-M8-540208 - Pressure Sensor

€267.58€228.70 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€267.58

Brand
Festo
Permission
RCM mark
Display Type
Illuminating LCD
Material Note
RoHs compliant
Control Output
2xPNP
Fastening Type
Front panel integration
Setting Options
Teach-in
Switch Function
Freely programmable
Cable Length (m)
0,3
Housing Material
PA reinforced
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Tamper-proof Fuse
PIN code
Measured Parameter
Relative pressure
Accuracy In ± % FS
2
Measurement Process
Piezoresistive pressure sensor with display
Presentable Unit(s)
bar
Protection Category
IP65
Switch On Time (ms)
3
Pneumatic Connection
QS-4
Switch Off Time (ms)
3
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Display Range End Value
100
Overload Pressure (MPa)
1,5
Repeatability In ± %FS
0,3
Max. Output Current (mA)
100
Medium Temperature (°C)
0 to 50
Short Circuit Resistance
yes
Ambient Temperature (°C)
0 to 50
Settings Range Hysteresis
0 to 90
Switching Element Function
Switchable
Switching Status Indicator
LCD yellow
Reverse Polarity Protection
for all electrical connections
Display Range Starting Value
0
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
15 to 30
Settings Range Threshold Value
0 to 100
Reproducibility Switching Value
0,3
From Medium Contacting Materials
PA reinforced
Temperature Coefficient In ± %FS/K
0,05
Note On Operating And Control Medium
Oiled operation possible
Electrical Connection 1, Fastening Type
Screw lock
Electrical Connection 1, Connection Type
Plug
Pressure Measurement Range End Value (MPa)
1,0
Electrical Connection 1, Connection Pattern
991171
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M8x1, A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
4
Pressure Measurement Range Starting Value (MPa)
0
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568178697
Manufacturer
Festo
