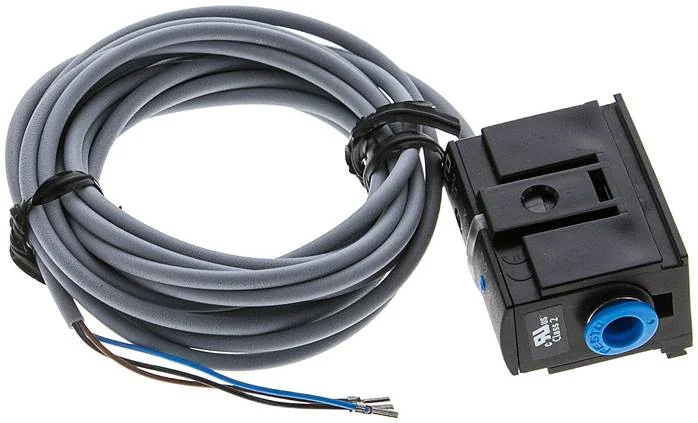

Festo - SDE5-D10-C3-Q6E-P-K-542896 - Pressure Sensor

SKU: festo-sde5-d10-c3-q6e-p-k-542896

Browse all parts
Festo - SDE5-D10-C3-Q6E-P-K-542896 - Pressure Sensor

€125.75€107.48 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€125.75

Brand
Festo
Permission
c UL us - Recognized (OL)
Material Note
RoHs compliant
Control Output
PNP
Fastening Type
With Accessories
Switch Function
Window comparator
Cable Length (m)
2,5
Housing Material
POM
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Measured Parameter
Relative pressure
Measurement Process
Piezoresistive pressure sensor
Protection Category
IP40
Pneumatic Connection
QS-6
Electrical Connection
nach EN 60947-5-2
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Repeatability In ± %FS
0,3
Max. Output Current (mA)
100
Medium Temperature (°C)
0 to 50
Short Circuit Resistance
yes
Ambient Temperature (°C)
0 to 50
Switching Element Function
NC contact
Switching Status Indicator
LED yellow
Reverse Polarity Protection
for all electrical connections
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
15 to 30
Settings Range Threshold Value
0 to 100
Temperature Coefficient In ± %FS/K
0,05
Note On Operating And Control Medium
Oiled operation possible
Pressure Measurement Range End Value (bar)
10
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Pressure Measurement Range Starting Value (bar)
0
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568180898
Manufacturer
Festo
