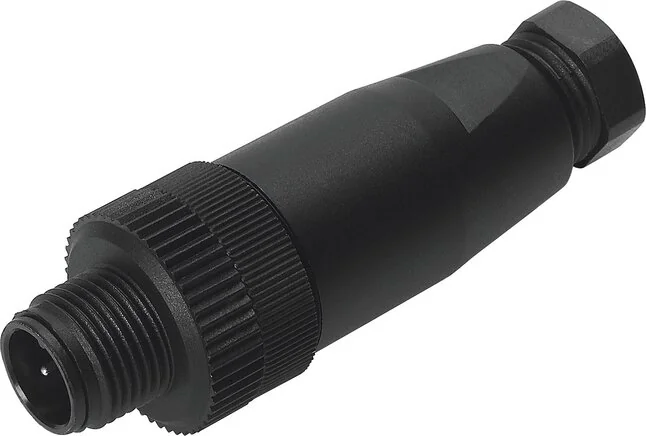

Festo - SEA-4GS-7-2,5-192008 - Plug

SKU: festo-sea-4gs-7-2-5-192008

Browse all parts
Festo - SEA-4GS-7-2,5-192008 - Plug

€25.17€21.51 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€25.17

Brand
Festo
Cable Gland
Pg7
Fastening Type
With Threaded sleeve
Housing Colour
black
Housing Material
PA
Based On Standard
EN 61076-2-101, EN 61984
Protection Category
IP65
Locking Nut Material
PA
Material Information
RoHs compliant
Electrical Connection
M12x1, 4-pin, Wiring diagram Form A acc. to EN 175301-803, Straight plug / screw clamp
Installation Position
arbitrary
Plug Contacts Material
brass, White bronze coated
Degree Of Contamination
3
Ambient Temperature (°C)
-40 to 85
Surge Voltage Strength (kV)
2,5
Permitted Cable Diameter (mm)
2.5 to 2.9
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range AC (V)
<= 250 V
Operating Voltage Range DC (V)
<= 250 V
Connection Cross-section (mm²)
0.14 to 0.5
Current Carrying Capacity At 40°C (A)
4
CE Certificate (See Declaration Of Conformity)
to EU low voltage directive
EAN
4052568043667
Manufacturer
Festo
