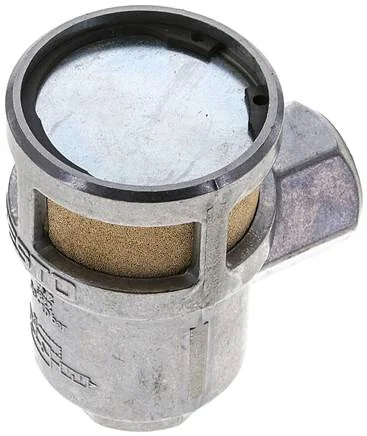

Festo - SEU-1/2-6822 - Quick Exhaust Valve

SKU: festo-seu-1-2-6822

Browse all parts
Festo - SEU-1/2-6822 - Quick Exhaust Valve

€147.85€126.37 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€147.85

Brand
Festo
Fastening Type
Screwable
Seals Material
NBR
Valve Function
Quick venting
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Nominal Width (mm)
15
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/2
Pneumatic Connection 2
G1/2
Medium Temperature (°C)
-20 to 75
Operating Pressure (bar)
0.3 to 10
Ambient Temperature (°C)
-20 to 75
Sound Pressure Level (dB(A))
86
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate, Exhaust 0.6->0 MPa (6->0 bar, 87->0 psi)
6500
Standard Nominal Flow Rate, Exhaust 0.6->0.5 MPa (6->5 bar, 87->72.5 psi)
4.020
Standard Nominal Flow Rate, Air Flow 0.6->0,5 MPa (6->5 bar, 87->72.5 psi)
4.560
EAN
4052568001391
Manufacturer
Festo
