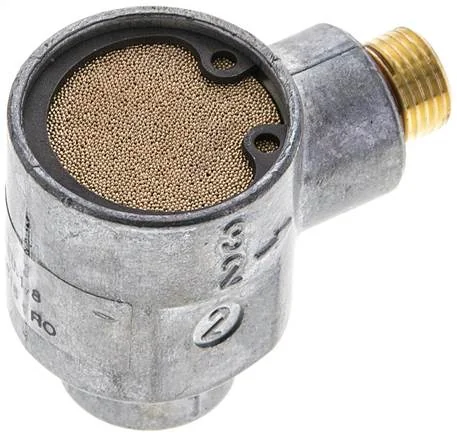

Festo - SEU-1/8-4616 - Quick Exhaust Valve

SKU: festo-seu-1-8-4616

Browse all parts
Festo - SEU-1/8-4616 - Quick Exhaust Valve

€59.83€51.14 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€59.83

Brand
Festo
Fastening Type
Screwable
Seals Material
NBR
Valve Function
Quick venting
Housing Material
Zinc pressure cast
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Nominal Width (mm)
5
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Medium Temperature (°C)
-20 to 75
Operating Pressure (bar)
0.5 to 10
Ambient Temperature (°C)
-20 to 75
Sound Pressure Level (dB(A))
85
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate, Exhaust 0.6->0 MPa (6->0 bar, 87->0 psi)
1000
Standard Nominal Flow Rate, Exhaust 0.6->0.5 MPa (6->5 bar, 87->72.5 psi)
550
Standard Nominal Flow Rate, Air Flow 0.6->0,5 MPa (6->5 bar, 87->72.5 psi)
300
EAN
4052568000714
Manufacturer
Festo
