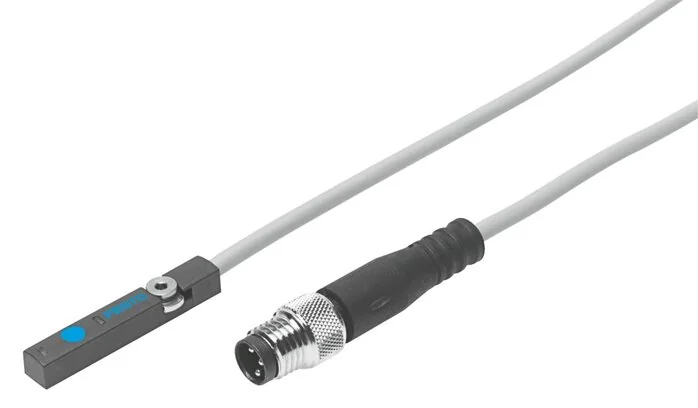

Festo - SIES-8M-NO-24V-K-2,5-M8D-551403 - Proximity Switch

SKU: festo-sies-8m-no-24v-k-2-5-m8d-551403

Browse all parts
Festo - SIES-8M-NO-24V-K-2,5-M8D-551403 - Proximity Switch

€103.37€88.35 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€103.37

Brand
Festo
Size
Slot 8
Design
For T-slot
KC-mark
KC-EMV
Permission
c UL us - Listed (OL)
Torque (Nm)
0,6
Material Note
RoHs compliant
Control Output
NPN
Fastening Type
Insertable from above into the slot
Housing Colour
black
Switch On Time
0,0001
Line Properties
Standard/ energiekettentauglich
Residual Ripple
10%
Cable Length (m)
2,5
Housing Material
High-alloyed stainless steels
Integration Type
flush
Residual Current
0,01
Voltage Drop (V)
2
Reduction Factors
Stahl St 37 = 1,0
Measured Parameter
Position
Overload Resistant
Available
Cable Shield Colour
Grey
Protection Category
IP67
Complies To Standard
EN 60947-5-2
Test Conditions Line
Energiekette: > 5 Millionen Zyklen, Biegeradius 75 mm
Cable Sleeve Material
TPE-U(PU)
Installation Position
arbitrary
Measurement Principle
Inductive
Empty Run Current (mA)
10
Insulation Voltage (V)
50
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
brass, Gold plated
Degree Of Contamination
3
Max. Output Current (mA)
150
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
-25 to 70
Minimum Load Current (mA)
0
Insulation Sleeve Material
PP
Switching Element Function
NC contact
Switching Status Indicator
LED yellow
Connection Outlet Direction
along
Reverse Polarity Protection
for all electrical connections
Surge Voltage Strength (kV)
0,8
Inductive Protection Circuit
Integrated
Max. Switching Frequency (Hz)
4500
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Switching Capacity DC (W)
4,5
Operating Voltage Range DC (V)
10 to 30
Measurement Switching Distance (mm)
1,5
Repeatability At Constant Conditions
<= 0.05 mm, side approaching
Electrical Connection 1, Fastening Type
drehbar
Electrical Connection 1, Connection Type
Cable with plug
Electrical Connection 1, Connection Pattern
991155
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften (UK-R)
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M8x1, A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
3
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar/nicht drehbar
Ambient Temperature For Moving Cable Placements (°C)
-5 to 70
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568095000
Manufacturer
Festo
