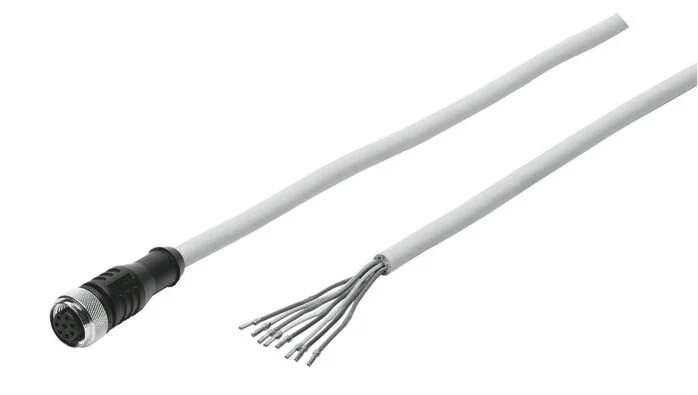

Festo - SIM-M12-3GD-5-PU-159429 - Connection Line

SKU: festo-sim-m12-3gd-5-pu-159429

Browse all parts
Festo - SIM-M12-3GD-5-PU-159429 - Connection Line

€68.55€58.59 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€68.55

Brand
Festo
Plug Coding
A
Cable Set Up
3x0,25
Housing Colour
black
Seals Material
NBR
Line Properties
Standard
Cable Length (m)
5,0
Housing Material
TPE-U(PU)
Cable Diameter (mm)
3,8
Cable Shield Colour
Grey
Protection Category
IP65, IP68
Complies To Standard
EN 61076-2-101, EN 61984
Locking Nut Material
brass, nickel-plated
Material Information
Halogenfrei, RoHS konform, phosphorsäureester frei
Test Conditions Line
Bending radius strength to Festo standard, Cable track: 5 million cycles, bending radius 75 mm, Test conditions on request
Cable Sleeve Material
TPE-U(PU)
Electrical Connection
M12x1 / -, 5-pin / 3-wire, Straight socket / Open end
Plug Contacts Material
brass, Gold plated
Degree Of Contamination
3
Ambient Temperature (°C)
-25 to 80
Insulation Sleeve Material
PP
Colour Code Wire Insulation
blue, brown, black
Surge Voltage Strength (kV)
2,5
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range AC (V)
0 to 250
Operating Voltage Range DC (V)
0 to 250
Current Carrying Capacity At 40°C (A)
4,0
Conductor - Nominal Cross-section (mm²)
0,25
CE Certificate (See Declaration Of Conformity)
acc. to EU Low voltage Directive, acc. to EU-RoHS Directive
Ambient Temperature For Moving Cable Placements (°C)
-5 to 80
EAN
4052568071561
Manufacturer
Festo
