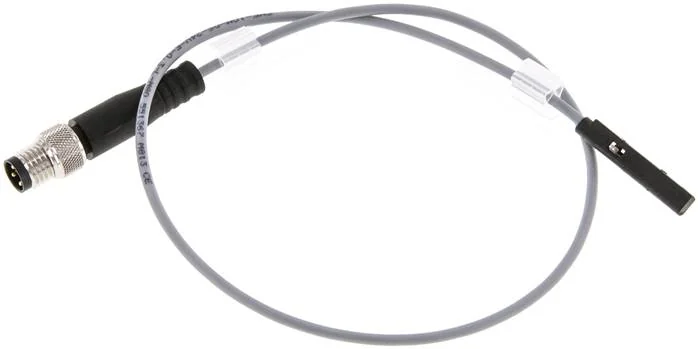

Festo - SME-10M-DS-24V-E-0,3-L-M8D-551367 - Proximity Switch

SKU: festo-sme-10m-ds-24v-e-0-3-l-m8d-551367

Browse all parts
Festo - SME-10M-DS-24V-E-0,3-L-M8D-551367 - Proximity Switch

€56.63€48.40 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€56.63

Brand
Festo
Design
For round nut
Permission
RCM mark
Material Note
halogenfrei
Control Output
Bipolar contact
Fastening Type
Insertable from above into the slot
Line Properties
energiekettentauglich/ robotertauglich
Cable Length (m)
0,3
Housing Material
High-alloyed stainless steels
Special Features
Oil resistant
Voltage Drop (V)
1,5
Measured Parameter
Position
Overload Resistant
no
Repeatability (mm)
0,2
Protection Category
IP68
Switch On Time (ms)
1,2
Complies To Standard
EN 60947-5-2
Switch Off Time (ms)
1
Test Conditions Line
Energiekette: > 5 Millionen Zyklen, Biegeradius 28 mm
Cable Sleeve Material
TPE-U(PUR)
Installation Position
arbitrary
Measurement Principle
Reed magnetic
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Output Current (mA)
300
Short Circuit Resistance
no
Ambient Temperature (°C)
-40 to 70
Max. Switching Capacity AC
9
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Connection Outlet Direction
along
Max. Tightening Torque (Nm)
0,4
Reverse Polarity Protection
no
Max. Switching Frequency (Hz)
50
Max. Switching Capacity DC (W)
9
Operating Voltage Range AC (V)
5 to 30
Operating Voltage Range DC (V)
5 to 30
Rated Operating Voltage DC (V)
24
Electrical Connection 1, Fastening Type
drehbar
Electrical Connection 1, Connection Type
Cable with plug
Max. Output Current In Fastening Sets (mA)
50
Electrical Connection 1, Connection Pattern
991155
Max. Switching Capacity AC In Fastening Sets
1,5
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M8x1, A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
3
Max. Switching Capacity DC In Fastening Sets (W)
1,5
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar/nicht drehbar
Ambient Temperature For Moving Cable Placements (°C)
-20 to 70
EAN
4052568094690
Manufacturer
Festo
