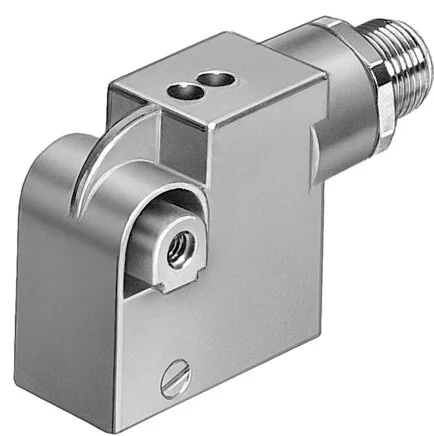

Festo - SMTSO-1-PS-S-LED-24-30441 - Proximity Switch

SKU: festo-smtso-1-ps-s-led-24-30441

Browse all parts
Festo - SMTSO-1-PS-S-LED-24-30441 - Proximity Switch

€525.44€449.09 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€525.44

Brand
Festo
Design
Block structure
Permission
RCM mark
Material Note
RoHs compliant
Control Output
PNP
Fastening Type
With Accessories
Hysteresis (mm)
0,1 to 1,5
Residual Ripple
10%
Housing Material
Zinc pressure cast
Special Features
resistant to welding spatter
Voltage Drop (V)
3
Based On Standard
EN 60947-5-2
Measured Parameter
Position
Overload Resistant
Available
Repeatability (mm)
0,2
Protection Category
IP67
Switch On Time (ms)
35
Switch Off Time (ms)
20
Installation Position
arbitrary
Measurement Principle
Inductive magnet
Residual Current (mA)
0,01
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
brass, Gold plated
Max. Output Current (mA)
200
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
-25 to 70
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Connection Outlet Direction
along
Operation-readiness Display
LED green
Reverse Polarity Protection
for all electrical connections
Inductive Protection Circuit
adjusted to MZ, MY, ME coils
Max. Switching Frequency (Hz)
20
Max. Switching Capacity DC (W)
6
Operating Voltage Range DC (V)
10 to 30
Noise Immunity To Magnetic Fields
magnetisches Wechselfeld
Electrical Connection 1, Fastening Type
Screw lock
Electrical Connection 1, Connection Type
Plug
Electrical Connection 1, Connection Pattern
991168
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 1, Number Of Pins / Wires
3
EAN
4052568113599
Manufacturer
Festo
