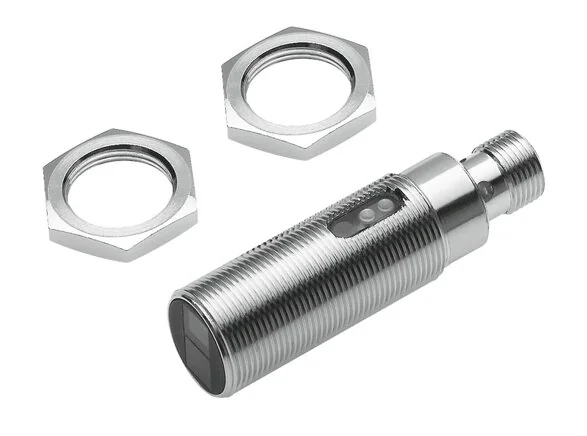

Festo - SOEG-E-M18-PA-S-2L-537704 - Receiver

SKU: festo-soeg-e-m18-pa-s-2l-537704

Browse all parts
Festo - SOEG-E-M18-PA-S-2L-537704 - Receiver

€98.78€84.43 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€98.78

Brand
Festo
Size
M18x1
Design
round
Permission
c UL us - Listed (OL)
Range (mm)
20000
Torque (Nm)
20
Control Output
PNP
Fastening Type
With locking nut
Residual Ripple
20%
Housing Material
chrome-plated
Voltage Drop (V)
2
Measured Parameter
Position
Measurement Process
Empfänger
Protection Category
IP67
Complies To Standard
EN 60947-5-2
Locking Nut Material
chrome-plated
Electrical Connection
Plug
Measurement Principle
Optoelectronic
Empty Run Current (mA)
10
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Output Current (mA)
200
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
-25 to 55
Functional Reserve Display
LED green
Switching Element Function
Anti-valent
Switching Status Indicator
LED yellow
Reverse Polarity Protection
for all electrical connections
Max. Switching Frequency (Hz)
1000
Corrosion Resistance Class KBK
1 - low corrosion stress
Operating Voltage Range DC (V)
10 to 36
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Ambient Temperature For Moving Cable Placements (°C)
-5 to 55
EAN
4052568088750
Manufacturer
Festo
