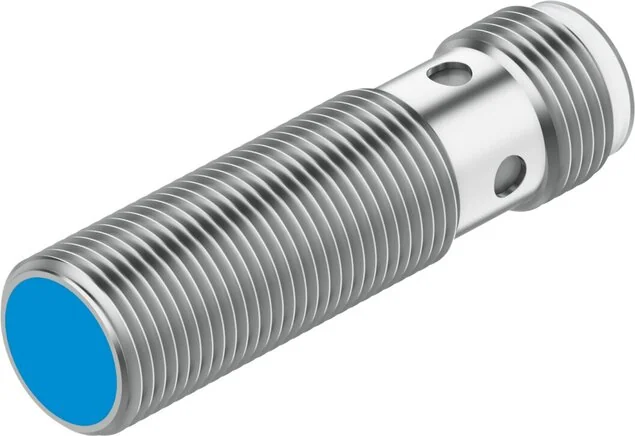

Festo - SOIA-M12PB-PNLK-M12-8161199 - Distance Sensor

SKU: festo-soia-m12pb-pnlk-m12-8161199

Browse all parts
Festo - SOIA-M12PB-PNLK-M12-8161199 - Distance Sensor

€76.60€65.47 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€76.60

Brand
Festo
Size
M12
Design
round
Report
IO-Link
Hysteresis
1 to 20
Permission
c UL us - Listed (OL)
Torque (Nm)
0 to 10
Material Note
RoHs compliant
Accuracy Speed
± 20 %FS
Control Output
Push-Pull
Housing Colour
Grey
Residual Ripple
20%
Housing Material
PBT
Integration Type
flush
Voltage Drop (V)
1
IO-Link, Port Type
Class A
Linearity Error FS
3
Measured Parameter
Weg
Overload Resistant
Available
Reference Material
Baustahl, 1.0037, S235JR
Repeatability (mm)
±0,04
Measurement Process
Abstandssensor
Protection Category
IP67
Switch On Time (ms)
100
Complies To Standard
EN 60947-5-2
Counter Nut Material
Brass
IO-Link, Revision ID
V1.1
Measurement Principle
Inductive
Repeat Accuracy Speed
±5 %FS
Residual Current (mA)
0,03
Temperature Drift (%)
±10
Empty Run Current (mA)
17
Insulation Voltage (V)
30
LABS (PWIS) Conformity
VDMA24364-B2-L
Resolution Travel (mm)
0,01
IO-Link, Device Profile
Smart Sensor - SSP 4.1.1
Speed Measurement Range
1 to 1400
Acceleration Value Range
-3270 to 3270
Max. Output Current (mA)
100
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
-25 to 70
Bearing Temperature (°C)
-40 to 85
IO-Link, SIO Mode Support
yes
Minimum Load Current (mA)
0
IO-Link, Transmission Rate
COM2
Switching Element Function
Switchable
Switching Status Indicator
LED yellow
IO-Link, Data Memory Needed
308
Path Measurement Range (mm)
0 to 4
Reverse Polarity Protection
yes
Surge Voltage Strength (kV)
0,5
Inductive Protection Circuit
Integrated
IO-Link, Service Data Unit IN
Velocity 2 value range 32 bit
Max. Switching Frequency (Hz)
1200
Corrosion Resistance Class KBK
3 - severe corrosion stress
Operating Voltage Range DC (V)
10 to 30
IO-Link, Minimum Cycle Time (ms)
3,2
IO-Link, Process Data Contents IN
Motion diagnostic 2 bit DSC
Noise Immunity To Magnetic Fields
< 50 µT
Sensor Integration Strength (bar)
1
Measurement Switching Distance (mm)
0 to 4
Electrical Connection 1, Fastening Type
nicht drehbar
Electrical Connection 1, Connection Type
Plug
IO-Link, Process Data Length Input (Bit)
32
Information About Operating Voltage Range DC
18 - 30 V in IO-Link Mode
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 1, Number Of Pins / Wires
3
EAN
4052568784904
Manufacturer
Festo
