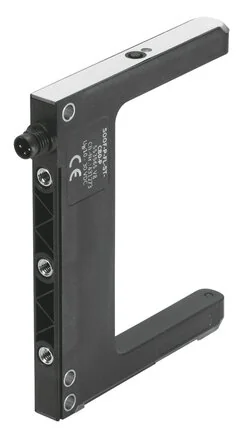

Festo - SOOF-P-FL-ST-C80-N-553566 - Fork Light Barrier

SKU: festo-soof-p-fl-st-c80-n-553566

Festo - SOOF-P-FL-ST-C80-N-553566 - Fork Light Barrier

€211.33€180.62 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€211.33

Brand
Festo
Size
Fork 80x55 mm
Light Type
red
Permission
c UL us - Listed (OL)
Material Note
RoHs compliant
Control Output
NPN
Fork Width (mm)
80
Hysteresis (mm)
0,25
Residual Ripple
10%
Setting Options
Teach-in
Housing Material
PC
Measured Parameter
Position
Repeatability (mm)
0,03
Measurement Process
Forked light curtain
Protection Category
IP67
Electrical Connection
Plug
Measurement Principle
Optoelectronic
Empty Run Current (mA)
30
Insulation Voltage (V)
500
LABS (PWIS) Conformity
VDMA24364-Zone III
Degree Of Contamination
3
Max. Output Current (mA)
100
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
-10 to 60
Switching Element Function
Switchable
Switching Status Indicator
LED yellow
Reverse Polarity Protection
for operating voltage connections
Surge Voltage Strength (kV)
0,8
Minimum Object Diameter (mm)
0,5
Max. Switching Frequency (Hz)
2000
Corrosion Resistance Class KBK
0 - No corrosion stressing
Operating Voltage Range DC (V)
10 to 30
Electrical Connection 1, Fastening Type
nicht drehbar
Electrical Connection 1, Connection Type
Plug
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M8x1, A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
3
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar
EAN
4052568197650
Manufacturer
Festo
