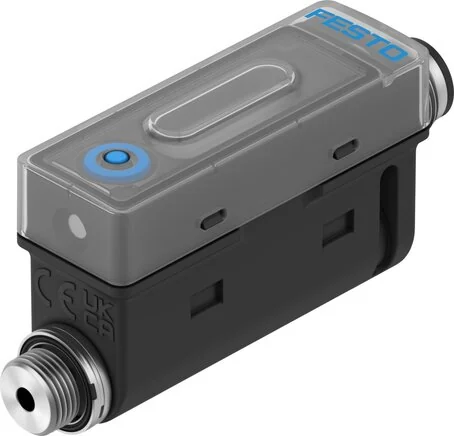

Festo - SPAF-B11R-G18M-N-PNLK-M12-8181220 - Pressure Sensor

SKU: festo-spaf-b11r-g18m-n-pnlk-m12-8181220

Festo - SPAF-B11R-G18M-N-PNLK-M12-8181220 - Pressure Sensor

€149.13€127.46 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€149.13

Brand
Festo
Report
IO-Link
Permission
RCM mark
Display Type
LED display
Material Note
RoHs compliant
Control Output
PNP/NPN switchable
Fastening Type
With Accessories
Setting Options
Teach-in
Switch Function
Threshold value with variable hysteresis
Housing Material
PA reinforced
Operating Medium
Inerte Gase
Tamper-proof Fuse
IO-Link
IO-Link, Port Type
Class A
Measured Parameter
Relative pressure
Accuracy In ± % FS
1,5
Measurement Process
Piezoresistive pressure sensor
Protection Category
IP65
Switch On Time (ms)
3
IO-Link, Revision ID
V1.1
Pneumatic Connection
Male thread G1/8
Switch Off Time (ms)
3
Installation Position
arbitrary
Plug Housing Material
brass, nickel-plated
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
IO-Link, Device Profile
Smart Sensor - SSP 4.1.1
Overload Pressure (MPa)
1,5
Repeatability In ± %FS
0,3
Max. Output Current (mA)
100
Medium Temperature (°C)
0 to 50
Short Circuit Resistance
yes
Ambient Temperature (°C)
0 to 50
IO-Link, SIO Mode Support
yes
Settings Range Hysteresis
0 to 90
IO-Link, Transmission Rate
COM3
Switching Element Function
Opener/closer switchable
Switching Status Indicator
LED yellow
IO-Link, Data Memory Needed
500
Operation-readiness Display
LED green
Reverse Polarity Protection
for all electrical connections
IO-Link, Service Data Unit IN
Temperature 16 bit
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
15 to 30
Settings Range Threshold Value
0 to 100
From Medium Contacting Materials
PA reinforced
IO-Link, Minimum Cycle Time (ms)
0,9
IO-Link, Process Data Contents IN
Druck-Überwachung 2 bit SSC
Temperature Coefficient In ± %FS/K
0,05
Note On Operating And Control Medium
Oiled operation possible
Electrical Connection 1, Fastening Type
nicht drehbar
Electrical Connection 1, Connection Type
Plug
IO-Link, Process Data Length Input (Bit)
32
IO-Link, Process Data Length Output (Bit)
0
Pressure Measurement Range End Value (MPa)
1,0
Electrical Connection 1, Connection Pattern
991168
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 1, Number Of Pins / Wires
4
Pressure Measurement Range Starting Value (MPa)
-0,1
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568650001
Manufacturer
Festo
