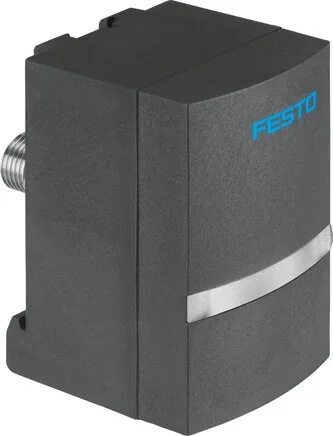

Festo - SPAU-P10R-T-G18M-LK-A-M12D-8003346 - Pressure Sensor

SKU: festo-spau-p10r-t-g18m-lk-a-m12d-8003346

Browse all parts
Festo - SPAU-P10R-T-G18M-LK-A-M12D-8003346 - Pressure Sensor

€183.29€156.66 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€183.29

Brand
Festo
Report
IO-Link
KC-mark
KC-EMV
Permission
c UL us - Listed (OL)
Display Type
LED
Material Note
RoHs compliant
Control Output
2xPNP
Fastening Type
With thread
Rise Time (ms)
3
Analogue Output
4 - 20 mA
Setting Options
IO-Link
Switch Function
Freely programmable
IO-Link, Profile
Smart sensor profile
Operating Medium
Inerte Gase
Tamper-proof Fuse
IO-Link
Measured Parameter
Relative pressure
Accuracy In ± % FS
1,5
IO-Link, Port Class
A
Measurement Process
Piezoresistive pressure sensor
Presentable Unit(s)
psi
Protection Category
IP67
Pneumatic Connection
G1/8
Resolution ADC (Bit)
12
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Overload Pressure (MPa)
1,5
Repeatability In ± %FS
0,3
Max. Output Current (mA)
100
Medium Temperature (°C)
0 to 50
Short Circuit Resistance
yes
Ambient Temperature (°C)
0 to 50
IO-Link, Function Classes
Teach channel
IO-Link, Protocol Version
Device V 1.1
IO-Link, SIO Mode Support
yes
Settings Range Hysteresis
0 to 90
Switching Element Function
Opener/closer switchable
IO-Link, Communication Mode
COM2 (38.4 kBaud)
IO-Link, Data Memory Needed
500
Reverse Polarity Protection
for all electrical connections
Corrosion Resistance Class KBK
2 - moderate corrosion stress
IO-Link, Process Data Width IN
2 Bytes
Operating Voltage Range DC (V)
20 to 30
Settings Range Threshold Value
0 to 100
IO-Link, Process Data Width OUT
0 Bytes
From Medium Contacting Materials
High-alloyed stainless steels
IO-Link, Minimum Cycle Time (ms)
3
IO-Link, Process Data Contents IN
2 bit BDC (Drucküberwachung)
Min. Load Resistance Voltage Output
10
Temperature Coefficient In ± %FS/K
0,05
Note On Operating And Control Medium
Oiled operation possible
Electrical Connection 1, Fastening Type
nicht drehbar
Electrical Connection 1, Connection Type
Plug
Max. Load Resistance Current Output (Ohm)
500
Pressure Measurement Range End Value (MPa)
1,0
Electrical Connection 1, Connection Pattern
995386
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 1, Number Of Pins / Wires
4
Pressure Measurement Range Starting Value (MPa)
0
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar
EAN
4052568277284
Manufacturer
Festo
