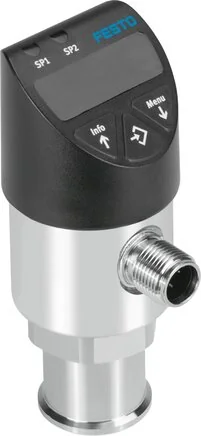

Festo - SPAW-P10R-G14F-2NV-M12-8022834 - Pressure Sensor

SKU: festo-spaw-p10r-g14f-2nv-m12-8022834

Browse all parts
Festo - SPAW-P10R-G14F-2NV-M12-8022834 - Pressure Sensor

€435.61€372.32 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€435.61

Brand
Festo
Permission
c UL us - Listed (OL)
Display Type
LED display
Material Note
RoHs compliant
Control Output
2xNPN
Fastening Type
With Accessories
Rise Time (ms)
3
Analogue Output
0 - 10 V
Setting Options
Via display and buttons
Switch Function
Freely programmable
Housing Material
High-alloyed stainless steels
Operating Medium
Gasförmige Medien
Tamper-proof Fuse
PIN code
Measured Parameter
Relative pressure
Accuracy In ± % FS
1
Measurement Process
Metal thin film pressure sensor
Presentable Unit(s)
psi
Protection Category
IP67
Pneumatic Connection
female thread G1/4
LABS (PWIS) Conformity
VDMA24364-Zone III
Overload Pressure (MPa)
2
Repeatability In ± %FS
0,15
Max. Output Current (mA)
250
Medium Temperature (°C)
-20 to 85
Short Circuit Resistance
yes
Ambient Temperature (°C)
0 to 80
Settings Range Hysteresis
0.5 to 99.5
Switching Element Function
Switchable
Switching Status Indicator
LED red
Reverse Polarity Protection
for operating voltage
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Operating Voltage Range DC (V)
15 to 35
Settings Range Threshold Value
0.5 to 100
From Medium Contacting Materials
High-alloyed stainless steels
Electrical Connection 1, Fastening Type
nicht drehbar
Electrical Connection 1, Connection Type
Plug
Pressure Measurement Range End Value (MPa)
1,0
Electrical Connection 1, Connection Pattern
995383
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 1, Number Of Pins / Wires
5
Pressure Measurement Range Starting Value (MPa)
0
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar
EAN
4052568258351
Manufacturer
Festo
