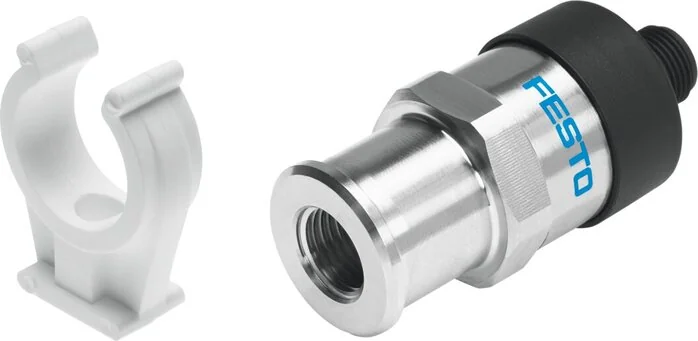

Festo - SPTW-B2R-G14-VD-M12-8000109 - Pressure Transmitter

SKU: festo-sptw-b2r-g14-vd-m12-8000109

Browse all parts
Festo - SPTW-B2R-G14-VD-M12-8000109 - Pressure Transmitter

€218.31€186.59 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€218.31

Brand
Festo
Permission
c UL us - Listed (OL)
Material Note
RoHs compliant
Fastening Type
With Accessories
Analogue Output
0.1 - 10 V
Housing Material
High-alloyed stainless steels
Operating Medium
Gasförmige Medien
Measured Parameter
Relative pressure
Accuracy In ± % FS
1
Measurement Process
Piezoresistive pressure sensor
Protection Category
IP67
Pneumatic Connection
G1/4
Installation Position
arbitrary
Plug Housing Material
PA
LABS (PWIS) Conformity
VDMA24364-Zone III
Overload Pressure (MPa)
0,2
Repeatability In ± %FS
0,1
Medium Temperature (°C)
0 to 80
Short Circuit Resistance
yes
Ambient Temperature (°C)
0 to 80
Linearity Error In ± %FS
0,5
Reverse Polarity Protection
for operating voltage
Max. Overload Pressure (bar)
2
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Operating Voltage Range DC (V)
14 to 30
From Medium Contacting Materials
High-alloyed stainless steels
Electrical Connection 1, Fastening Type
Screw lock
Electrical Connection 1, Connection Type
Plug
Pressure Measurement Range End Value (MPa)
0,1
Electrical Connection 1, Connection Pattern
995386
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 1, Number Of Pins / Wires
4
Pressure Measurement Range Starting Value (MPa)
-0,1
EAN
4052568256043
Manufacturer
Festo
