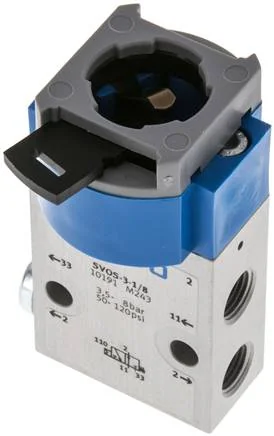

Festo - SVOS-3-1/8-10191 - Front Panel Valve

SKU: festo-svos-3-1-8-10191

Festo - SVOS-3-1/8-10191 - Front Panel Valve

€180.27€154.08 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€180.27

Brand
Festo
Overlap
positive Überdeckung
Reset Mode
Mechanical spring
Control Type
Direct
Actuation Type
Mechanical
Cover Material
POM
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
TPE-U(PU)
Valve Function
3/2 open monostable
Housing Material
Aluminium
Operating Medium
Compressed air to ISO 8573-1:2010 [-:-:-]
Sealing Principle
Soft
Actuating Force (N)
8
Construction Set Up
Piston seat
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Pneumatic Connection 3
G1/8
Operating Pressure (MPa)
0,35 to 0,8
Ambient Temperature (°C)
-10 to 60
Standard Nominal Flow Rate (Standardised To DIN 1343)
120
EAN
4052568111687
Manufacturer
Festo
