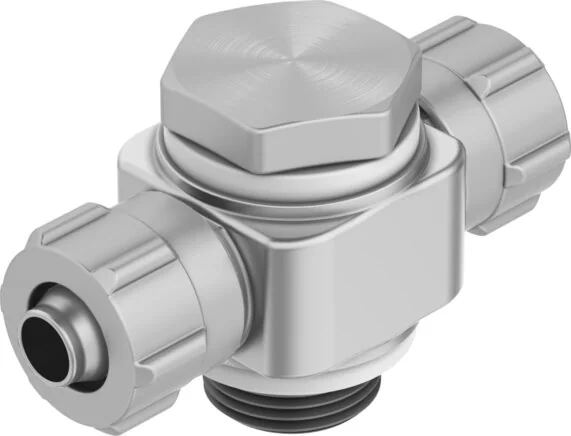

Festo - TCK-3/8-PK-6-4489 - T Quick Fitting

SKU: festo-tck-3-8-pk-6-4489

Festo - TCK-3/8-PK-6-4489 - T Quick Fitting

€26.86€22.96 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€26.86

Brand
Festo
Design
T-shape
Material Note
RoHs compliant
Gasket Material
TPE-U(PU)
Housing Material
Zinc pressure cast
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Seal Type On Stud
gasket
Nominal Width (mm)
4,9
Banjo Bolt Material
Aluminium-Knetlegierung, eloxiert
Locking Nut Material
Aluminium-Knetlegierung, eloxiert
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Male thread G3/8
Pneumatic Connection 2
für Stecknippel Innen-Ø 6 mm mit Mutter
Ambient Temperature (°C)
-10 to 60
Swivel Connection Material
Zinc pressure cast
Corrosion Resistance Class KBK
1 - low corrosion stress
Nominal Tightening Torque (Nm)
12,50
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 20 %
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568018955
Manufacturer
Festo
