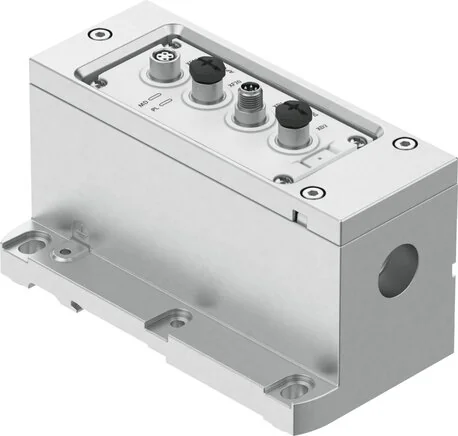

Material Note
RoHs compliant
Cover Material
Aluminium die casting
Max. Line Length
50 m Systemkommunikation
Module Parameter
Verhalten im Fehlerzustand
Diagnosis Via LED
Spannungsversorgung Last
Max. Power Supply
2 x 4 A (externe Sicherung erforderlich)
Relative Humidity
Not condensing
Dimensions W x L x H
71 mm x 142 mm x 84 mm
Fuse (Short Circuit)
Internal electronic fuse Per channel
LABS (PWIS) Conformity
VDMA24364-B2-L
Nominal Altitude Of Use
<= 2000 m NHN
Threaded Sleeve Material
Nickel-plated brass
Voltage Supply, Function
Elektronik/Sensoren und Last kommend
Ambient Temperature (°C)
5 to 50
Bearing Temperature (°C)
-20 to 60
Max. Number Of Valve Coils
24
Reverse Polarity Protection
yes
Power Blackout Bridging (ms)
10
Power Transmission, Function
Elektronik/Sensoren und Last gehend
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Number Of Valve Positions
12
Voltage Supply, Connection Type
Plug
Nominal Operating Voltage DC (V)
24
Communication Interface, Function
Systemkommunikation XF10 IN / XF20 OUT
Communication Interface, Protocol
AP-COM
Communication Interface, Shielding
yes
Power Transmission, Connection Type
socket / container / ….
Power Failure Buffering Of Load (ms)
3
Information About Protection Category
ungenutzte Anschlüsse verschlossen
Voltage Supply, Connection Technology
M8x1 A coded to EN 61076-2-104
Voltage Supply, Number Of Poles/wires
4
Diagnostics Per Internal Communication
Unterspannung Last
Permissible Voltage Fluctuation Of Load
± 10 %
Communication Interface, Connection Type
2x socket
Nominal Operating Voltage DC Of Load (V)
24
Power Transmission, Number Of Pins/wires
4
Power Transmission, Connection Technology
M8x1 A coded to EN 61076-2-104
Protect Against Direct And Indirect Contact
SELV
Intrinsic Power Input Operating Voltage Load
typisch 16 mA
Communication Interface, Number Of Pins/cores
4
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Communication Interface, Connection Technology
M8x1, D-codiert nach EN 61076-2-114
Permitted Voltage Oscillations Electronics/sensors
± 25 %
Nominal Operating Voltage DC Electronics / Sensor (V)
24
Intrinsic Power Input Operating Voltage Electronics/sensors
typisch 34 mA
