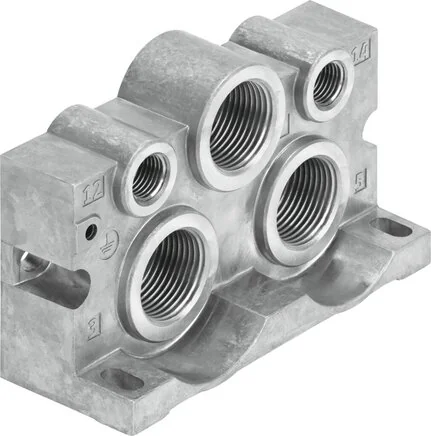

Festo - VABE-S1-2L-N34-8032667 - End Plate

SKU: festo-vabe-s1-2l-n34-8032667

Browse all parts
Festo - VABE-S1-2L-N34-8032667 - End Plate

€32.85€28.08 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€32.85

Brand
Festo
Material Note
RoHs compliant
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
mit Durchgangsbohrung für Schraube M6
Vacuum Capable
yes
Build Width (mm)
44
Exhaust Function
Can be throttled
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Based On Standard
ISO 5599-1
End Plate Material
Aluminium die casting
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
3/4 NPT
Pneumatic Connection 3
3/4 NPT
Pneumatic Connection 5
3/4 NPT
Medium Temperature (°C)
-10 to 50
Operating Pressure (MPa)
-0,09 to 1,6
Ambient Temperature (°C)
-10 to 50
Bearing Temperature (°C)
-20 to 60
Corrosion Resistance Class KBK
0 - No corrosion stressing
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
EAN
4052568428778
Manufacturer
Festo
