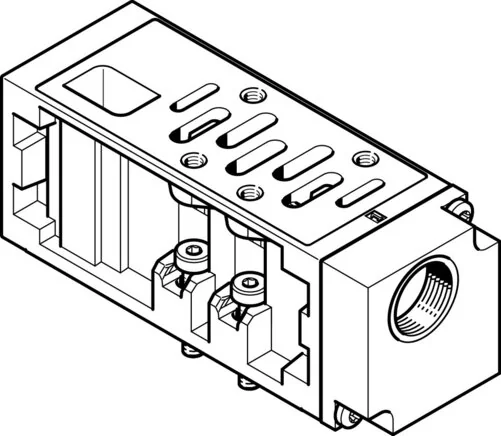

Festo - VABF-S1-2-P1A3-G12-555785 - Vertical Supply Plate

SKU: festo-vabf-s1-2-p1a3-g12-555785

Browse all parts
Festo - VABF-S1-2-P1A3-G12-555785 - Vertical Supply Plate

€92.86€79.37 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€92.86

Brand
Festo
Material Note
RoHs compliant
Build Width (mm)
54
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Based On Standard
ISO 5599-1
Protection Category
NEMA 4
Installation Position
arbitrary
Input Pressure 1 (bar)
0.5 to 10
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/2
Operating Pressure (MPa)
-0,09 to 1
Pneumatic Height Linking
Alternative pressure supply for 1
Ambient Temperature (°C)
-5 to 50
Fastening Type Height Linking
auf Einzelanschlussplatte
Corrosion Resistance Class KBK
0 - No corrosion stressing
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
2800
EAN
4052568096342
Manufacturer
Festo
