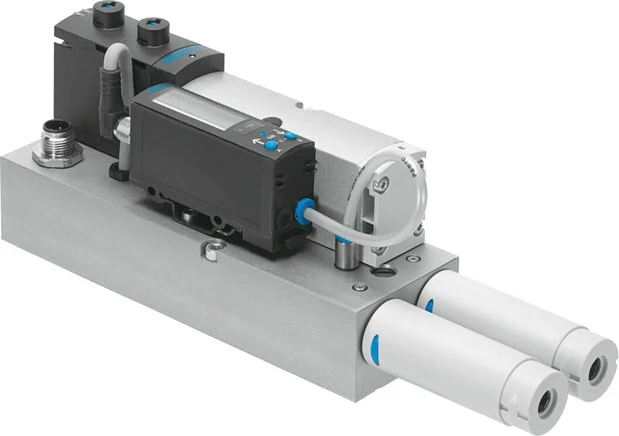

Festo - VABF-S4-1-V2B1-C-VH-20-571425 - Vacuum Block

SKU: festo-vabf-s4-1-v2b1-c-vh-20-571425

Browse all parts
Festo - VABF-S4-1-V2B1-C-VH-20-571425 - Vacuum Block

€1,632.97€1,395.70 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,632.97

Brand
Festo
Material Note
RoHs compliant
Power-on Time
100%
Fastening Type
on connection plate
Seals Material
NBR
Valve Function
5/3 ventilated
Screws Material
verzinkt
Switch Function
Threshold comparator
Window Material
PA
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Voltage Drop (V)
1,5
Measured Parameter
Relative pressure
Overload Resistant
Available
Accuracy In ± % FS
3
Construction Set Up
Not modular
Integrated Function
vacuum switch
Protection Category
IP65
Button Field Material
TPE-U
Hand Assist Actuation
Covered
Installation Position
arbitrary
Measurement Principle
Piezoresistive
Plug Housing Material
nickel-plated
Ejector Characteristic
Standard
Empty Run Current (mA)
50 to 150
LABS (PWIS) Conformity
VDMA24364-Zone III
Plug Contacts Material
Gold plated
Pneumatic Connection 1
Connection plate Size 26 mm to ISO 15407-2
Pneumatic Connection 3
Connection plate Size 26 mm to ISO 15407-2
Max. Output Current (mA)
50
Medium Temperature (°C)
0 to 50
Operating Pressure (MPa)
4 to 8
Short Circuit Resistance
yes
Ambient Temperature (°C)
0 to 50
Coil Characteristic Value
24 V DC: 1,3 W
Switching Element Function
NO contact
Reverse Polarity Protection
for all electrical connections
Inductive Protection Circuit
adjusted to MZ, MY, ME coils
Sound Pressure Level (dB(A))
78
Corrosion Resistance Class KBK
0 - No corrosion stressing
Operating Voltage Range DC (V)
21.6 to 26.4
Construction Type Silencer Type
open
Nominal Width Laval Nozzle (mm)
2
Settings Range Hysteresis (bar)
-0,9 to 0
Nominal Operating Pressure (bar)
6
Pressure Measurement Range (bar)
-1 to 0
Note On Operating And Control Medium
Oiled operation not possible
Settings Range Threshold Value (bar)
-0,999 to 0
EAN
4052568217860
Manufacturer
Festo
