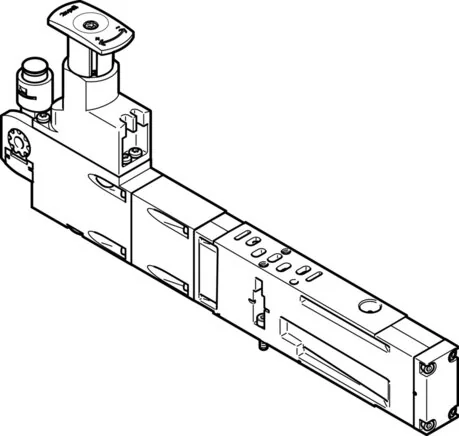

Festo - VABF-S4-2-R2C2-C-10E-560763 - Regulator Plate

SKU: festo-vabf-s4-2-r2c2-c-10e-560763

Browse all parts
Festo - VABF-S4-2-R2C2-C-10E-560763 - Regulator Plate

€294.83€251.99 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€294.83

Brand
Festo
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Build Width (mm)
18
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Based On Standard
ISO 15407-2
Controller Function
With relieving
Protection Category
NEMA 4
Installation Position
arbitrary
Control Panel Material
PA
Input Pressure 1 (bar)
0.5 to 10
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Operating Pressure (MPa)
1
Selection Pressure Gauge
Possible
Ambient Temperature (°C)
-5 to 50
Pressure Gauge Connection
With Holding clamp
Controller Housing Material
Aluminium die casting
Fastening Type Height Linking
auf Einzelanschlussplatte
Corrosion Resistance Class KBK
0 - No corrosion stressing
Pressure Regulation Range (MPa)
0,2 to 0,85
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
to EU low voltage directive
EAN
4052568207694
Manufacturer
Festo
