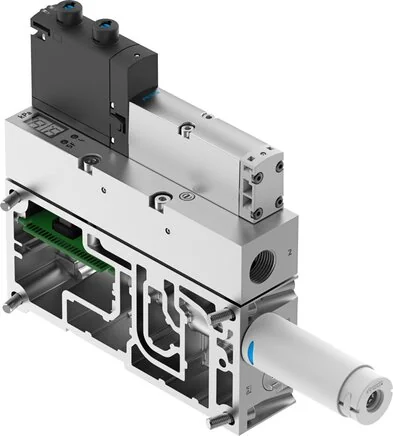

Festo - VABF-S4-2-V2B1-G38-CB-VL-14-AP-8088781 - Vacuum Suction Nozzle

SKU: festo-vabf-s4-2-v2b1-g38-cb-vl-14-ap-8088781

Browse all parts
Festo - VABF-S4-2-V2B1-G38-CB-VL-14-AP-8088781 - Vacuum Suction Nozzle

€1,641.09€1,402.64 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,641.09

Brand
Festo
Permission
RCM mark
Display Type
2-stellig
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Plate Material
Aluminium die casting
Seals Material
NBR
Valve Function
5/3 ventilated
Screws Material
Steel
Setting Options
über Parametersätze
Switch Function
Threshold comparator
Build Width (mm)
35
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Protection Class
III
Silencer Material
PU foam
Vacuum Connection
G3/8
Measured Parameter
Relative pressure
Accuracy In ± % FS
3
Electrical Controls
Fieldbus
Integrated Function
vacuum switch
Jet Nozzle Material
Aluminium wrought alloy
Presentable Unit(s)
kPa
Protection Category
IP65
Electrical Connection
over CPX
Hand Assist Actuation
Covered
Installation Position
arbitrary
Measurement Principle
Piezoresistive
Control Pressure (bar)
4 to 10
Ejector Characteristic
Standard
Empty Run Current (mA)
30
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Noise Status Indicator
LED
Pneumatic Connection 3
Silencer open
Capture Nozzle Material
POM
Display Range End Value
0,099
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
4 to 8
Signal Condition Display
LED
Ambient Temperature (°C)
-5 to 50
Regulation Screw Material
High-alloyed stainless steels
Reverse Polarity Protection
for all electrical connections
Display Range Starting Value
0
Corrosion Resistance Class KBK
0 - No corrosion stressing
Operating Voltage Range DC (V)
21,6 to 30
Construction Type Silencer Type
open
Nominal Width Laval Nozzle (mm)
1,4
Settings Range Hysteresis (bar)
0 to 0,09
Nominal Operating Pressure (bar)
6
Pressure Measurement Range (bar)
-1 to 0
Reproducibility Shifting Time FS
1
Note On Operating And Control Medium
Oiled operation not possible
Settings Range Threshold Value (bar)
0 to 0,099
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Venting Time For Nominal Operating Pressure (s)
0,25
Max. Suction Volume Flow Rate Against Atmosphere
91
Noise Level For Nominal Operating Pressure (dB(A))
62
Operating Pressure For Max. Suction Volume Flow (bar)
4
EAN
4052568451721
Manufacturer
Festo
