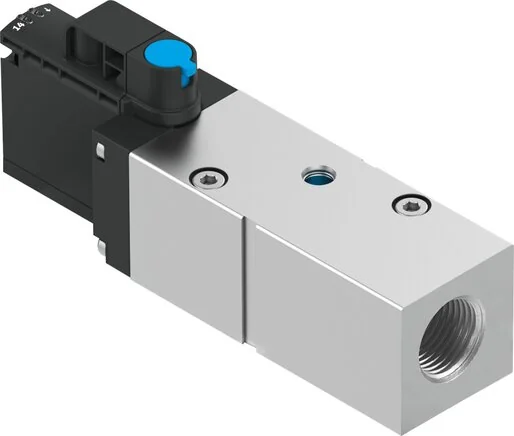

Festo - VABF-S6-1-P5A4S2YE-G12-1T5-PA-8067405 - Pressure Build-Up Valve

SKU: festo-vabf-s6-1-p5a4s2ye-g12-1t5-pa-8067405

Browse all parts
Festo - VABF-S6-1-P5A4S2YE-G12-1T5-PA-8067405 - Pressure Build-Up Valve

€608.22€519.85 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€608.22

Brand
Festo
Overlap
negative Überdeckung
Reset Mode
Mechanical spring
Width (mm)
40
Length (mm)
155
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
on connection plate
Flow Direction
Not reversible
Seals Material
NBR
Vacuum Capable
no
Valve Function
Entlüftung
Screws Material
Zinc-plated steel
Valve Size (mm)
40
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Relative Humidity
max. 90 % at 40 °C
Sealing Principle
Soft
Control Air Supply
Internal
Construction Set Up
Piston pusher
Electrical Controls
Fieldbus
Protection Category
IP65
Switchover Pressure
Umschaltpunkt zwischen 50 - 75 % des Betriebsdrucks
Additional Functions
Holding current reduction
MTTF, Part Component
452 Jahre, Druckschalter
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
41
Electrical Connection
Plug-in
Hand Assist Actuation
selbstrückstellend durch elektrisches Ansteuersignal
Installation Position
arbitrary
Switch On Point (bar)
0,2
Control Pressure (MPa)
0,2 to 1
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 3
G1/2
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
0,2 to 1
Signal Condition Display
LED grün, Druckschalter, entlüfteter Zustand
Switching Position Query
über Druckschalter, entlüfteter Zustand
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 60
Coil Characteristic Value
24 V DC: 1,6 W
Switch-on Point Max (bar)
0,3
Switch-off Point Min (bar)
0,05
Switching Element Function
NC contact
Normal Nominal Flow Venting
3.000
3.300
Corrosion Resistance Class KBK
0 - No corrosion stressing
Permitted Voltage Oscillations
± 10 %
Nominal Operating Voltage DC (V)
24
Note On Operating And Control Medium
Oiled operation not possible
Nominal Current For Current Reduction
11 mA nach 35 ms
Max. Positive Test Impulse At 0 Signal
2000
Max. Negative Test Impulse For 1 Signal
1200
Nominal Tightening Current Per Solenoid
60 mA to 35 ms
EAN
4052568299354
Manufacturer
Festo
