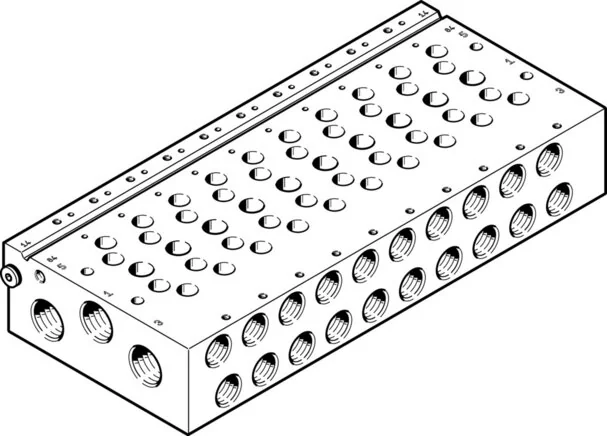

Festo - VABM-L1-18W-G38-3-574468 - Connection Strip

SKU: festo-vabm-l1-18w-g38-3-574468

Browse all parts
Festo - VABM-L1-18W-G38-3-574468 - Connection Strip

€129.00€110.26 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€129.00

Brand
Festo
Permission
c UL us - Recognized (OL)
Material Note
RoHs compliant
Pilot Air Port 12/14
M5
Pitch Dimension (mm)
19
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G3/8
Pneumatic Connection 2
G1/4
Pneumatic Connection 3
G3/8
Pneumatic Connection 4
G1/4
Pneumatic Connection 5
G3/8
Operating Pressure (MPa)
-0,09 to 1
Connection Strip Material
Aluminium wrought alloy
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Number Of Valve Positions
16
Exhaust Control Connection 82/84
M5
Max. Tightening Torque Wall Assembly (Nm)
3
Max. Tightening Torque Valve Fastening (Nm)
1,18
Max. Tightening Torque Slot Rail Assembly (Nm)
1,5
EAN
4052568223472
Manufacturer
Festo
