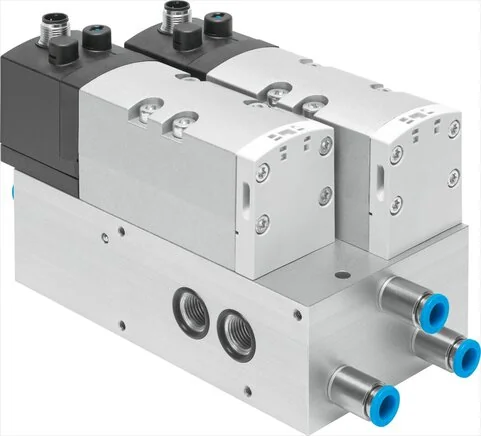

Festo - VABP-S1-1V1G-G14-2M-R3-2614863 - Connection Plate

SKU: festo-vabp-s1-1v1g-g14-2m-r3-2614863

Browse all parts
Festo - VABP-S1-1V1G-G14-2M-R3-2614863 - Connection Plate

€892.98€763.23 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€892.98

Brand
Festo
Material Note
RoHs compliant
O-ring Material
NBR
Screws Material
Steel
Build Width (mm)
42
Operating Medium
Compressed air to ISO 8573-1:2010 [6:4:4]
Installation Position
arbitrary
Control Pressure (bar)
3 to 8
Function Connection 32
G1/8
Function Connection 34
G1/8
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 2
G1/4
Pneumatic Connection 4
G1/4
Pneumatic Connection 22
G1/4
Pneumatic Connection 44
G1/4
Medium Temperature (°C)
0 to 50
Operating Pressure (bar)
0 to 16
Ambient Temperature (°C)
0 to 50
Connection Strip Material
Aluminium wrought alloy
Control Air 14 Connection
G1/8
Corrosion Resistance Class KBK
0 - No corrosion stressing
Standard Nominal Flow Rate (Standardised To DIN 1343)
1400
EAN
4052568254827
Manufacturer
Festo
