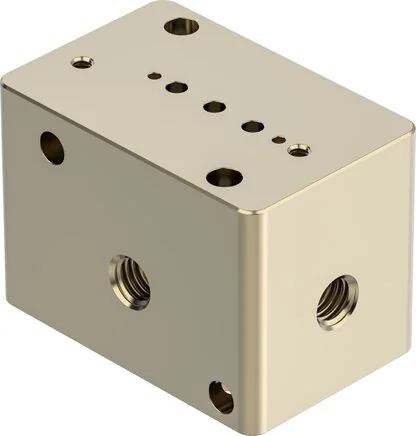

Festo - VABS-K2-10S-16-M5-P-8186875 - Connection Plate

SKU: festo-vabs-k2-10s-16-m5-p-8186875

Browse all parts
Festo - VABS-K2-10S-16-M5-P-8186875 - Connection Plate

€132.00€112.82 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€132.00

Brand
Festo
Size
10
Material Note
RoHs compliant
Flow Direction
Not reversible
Valve Size (mm)
10
Fluid Connection
female thread M5
Operating Medium
Gasförmige Medien
Food Compatibility
See expanded material information
Nominal Width (mm)
1,6
Construction Set Up
Anschlussrichtung seitlich
Fastening Type Valve
with female thread
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Medium Temperature (°C)
0 to 50
Ambient Temperature (°C)
0 to 50
Bearing Temperature (°C)
-20 to 70
Connection Plate Material
PEEK
Max. Tightening Torque (Nm)
0,6
Corrosion Resistance Class KBK
0 - No corrosion stressing
Max. Number Of Valve Positions
1
Fastening Type Connection Plate
With throughway bores
Note On Operating And Control Medium
Pay attention to the resistance of the materials in contact with media
Max. Tightening Torque Valve Fastening (Nm)
0,2
Max. Tightening Torque Screw Connection (Nm)
1,0
EAN
4052568635299
Manufacturer
Festo
