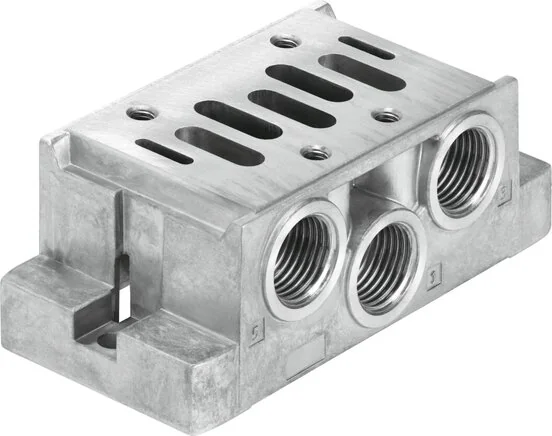

Festo - VABS-S1-2S-G12-8032644 - Connection Plate

SKU: festo-vabs-s1-2s-g12-8032644

Browse all parts
Festo - VABS-S1-2S-G12-8032644 - Connection Plate

€47.27€40.40 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€47.27

Brand
Festo
Material Note
RoHs compliant
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
mit Durchgangsbohrung für Schraube M6
Vacuum Capable
yes
Build Width (mm)
58
Exhaust Function
Can be throttled
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Based On Standard
ISO 5599-1
Pilot Air Port 12/14
G1/8
Control Pressure (MPa)
0 to 1.6
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/2
Pneumatic Connection 2
G1/2
Pneumatic Connection 3
G1/2
Pneumatic Connection 4
G1/2
Pneumatic Connection 5
G1/2
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
-0,09 to 1,6
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
-20 to 60
Connection Plate Material
Aluminium die casting
Corrosion Resistance Class KBK
0 - No corrosion stressing
Max. Number Of Valve Positions
1
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
EAN
4052568428686
Manufacturer
Festo
