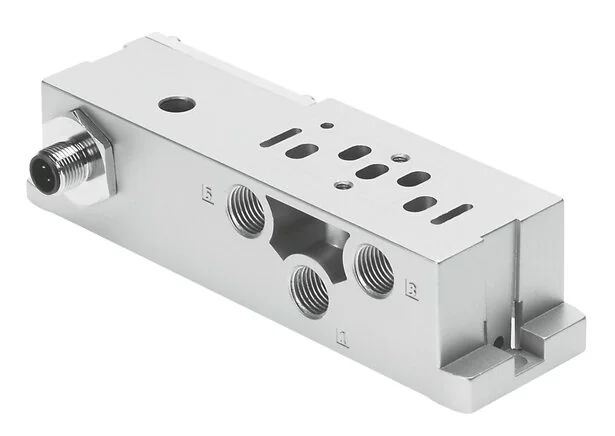

Festo - VABS-S4-1S-G14-R3-EX1E-8033157 - Connection Plate

SKU: festo-vabs-s4-1s-g14-r3-ex1e-8033157

Browse all parts
Festo - VABS-S4-1S-G14-R3-EX1E-8033157 - Connection Plate

€100.81€86.16 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€100.81

Brand
Festo
Material Note
RoHs compliant
Fastening Type
nach ISO 15407-2
Build Width (mm)
26
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
ATEX Gas Category
II 3G
Based On Standard
ISO 15407-2
Control Air Supply
external
Protection Category
In mounted condition
Installation Position
arbitrary
Ex Ambient Temperature
-5°C <= Ta <= +50°C
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Degree Of Contamination
3
Explosion Group Assembly
IIC
Operating Pressure (MPa)
-0,09 to 1
Ambient Temperature (°C)
-5 to 50
Connection Plate Material
Aluminium die casting
Surge Voltage Strength (kV)
0,8
Corrosion Resistance Class KBK
0 - No corrosion stressing
Operating Voltage Range DC (V)
24
Ex Ignition Protection Type Gas
Ex ec IIC T3 Gc X
Max. Surface Temperature Assembly
T3
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Current Carrying Capacity At 40 °C (A)
2
Ex Protection Approval Outside Of The EU
EPL Gc (GB)
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
EAN
4052568282844
Manufacturer
Festo
