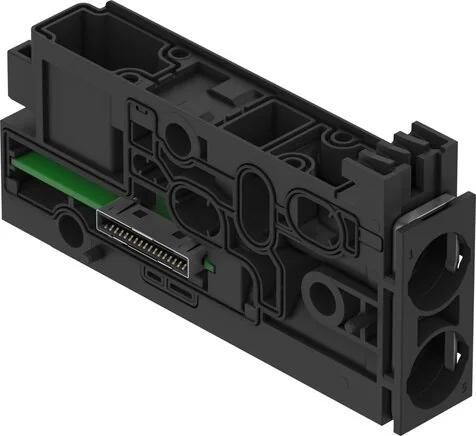

Festo - VABX-A-P-BU-12-SHUH-U-8191788 - Manifold Plate

SKU: festo-vabx-a-p-bu-12-shuh-u-8191788

Festo - VABX-A-P-BU-12-SHUH-U-8191788 - Manifold Plate

€45.51€38.90 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€45.51

Brand
Festo
Size
2
KC-mark
KC-EMV
Permission
RCM mark
Material Note
RoHs compliant
Fastening Type
Tie rod
Flow Direction
Reversible
Seals Material
NBR
Vacuum Capable
yes
Clamps Material
High-alloyed stainless steels
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Relative Humidity
5 - 95 %
Electrical Controls
multi-pin
Integrated Function
with electric manifold module
Protection Category
IP65
Dimensions W x L x H
19,05 mm x 104,3 mm x 43,1 mm
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
19,05
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
für Cartridge 15 mm
Pneumatic Connection 5
für Cartridge 15 mm
Degree Of Contamination
2
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 70
Connection Plate Material
PA reinforced
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Fastening Type Connection Plate
With throughway bores
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
EAN
4052568638078
Manufacturer
Festo
