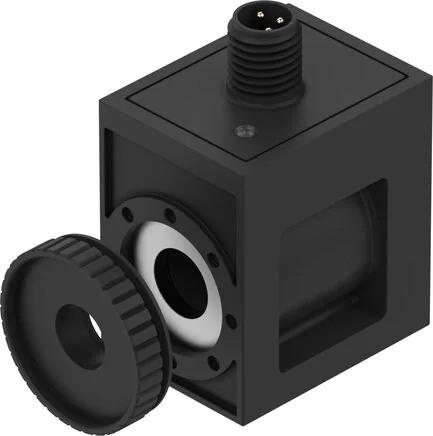

Festo - VACF-B-R8-1RAL-8150878 - Solenoid Coil

SKU: festo-vacf-b-r8-1ral-8150878

Browse all parts
Festo - VACF-B-R8-1RAL-8150878 - Solenoid Coil

€25.66€21.93 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€25.66

Brand
Festo
Permission
c UL us - Recognized (OL)
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
With Knurled nut
Housing Material
Steel
Winding Material
Copper
Solenoid Material
Thermoplast
Certification Body
UL MH18122
Impact Energy Value
IK06
Protection Category
IP65
Complies To Standard
ISO 20401
Max. Line Length (m)
30
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Medium Temperature (°C)
-20 to 60
Signal Condition Display
LED
Ambient Temperature (°C)
-20 to 60
Coil Characteristic Value
24VDC:NS1,2:HS3.3
Insulation Material Class
H
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
± 10 %
Insulation Class Of The Magnet Wire
H
Nominal Current For Current Reduction
50 mA nach 70 ms
Electrical Connection 1, Fastening Type
Screw lock
Nominal Tightening Current Per Solenoid
138 mA to 70 ms
Electrical Connection 1, Connection Type
Plug
Electrical Connection 1, Connection Pattern
991974
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M8x1, A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
3
EAN
4052568642587
Manufacturer
Festo
