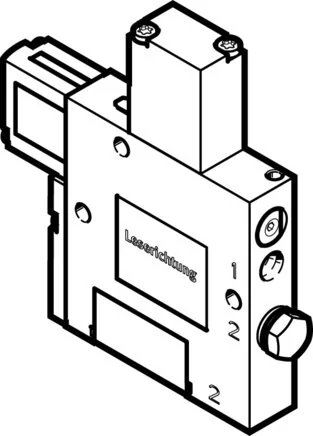

Festo - VADM-70-162501 - Vacuum Suction Nozzle

SKU: festo-vadm-70-162501

Browse all parts
Festo - VADM-70-162501 - Vacuum Suction Nozzle

€344.73€294.64 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€344.73

Brand
Festo
Permission
c UL us - Recognized (OL)
Max. Vacuum
85
Material Note
RoHs compliant
Power-on Time
100%
Fastening Type
with female thread
Seals Material
NBR
Valve Function
closed
Filter Material
PA
Filter Porosity
40
Piston Material
POM
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Silencer Material
POM
Vacuum Connection
G1/8
Integrated Function
Filter
Jet Nozzle Material
Nickel-plated brass
Protection Category
IP65
Pitch Dimension (mm)
15
Electrical Connection
Plug
Hand Assist Actuation
tentative
Installation Position
arbitrary
Ejector Characteristic
High vacuum
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
M5
Pneumatic Connection 3
Silencer integrated
Capture Nozzle Material
Nickel-plated brass
Filter Housing Material
PC
Medium Temperature (°C)
0 to 60
Operating Pressure (MPa)
0,15 to 0,8
Ambient Temperature (°C)
0 to 60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
21.6 to 26.4
Construction Type Silencer Type
closed
Nominal Width Laval Nozzle (mm)
0,7
Nominal Operating Pressure (MPa)
0,6
Note On Operating And Control Medium
Oiled operation not possible
Venting Time For Nominal Operating Pressure (s)
2,2
EAN
4052568131234
Manufacturer
Festo
