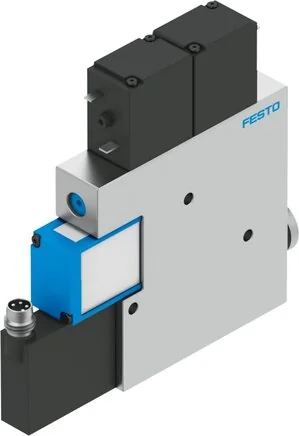

Festo - VADMI-70-P-162526 - Vacuum Suction Nozzle

SKU: festo-vadmi-70-p-162526

Browse all parts
Festo - VADMI-70-P-162526 - Vacuum Suction Nozzle

€1,001.74€856.19 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,001.74

Brand
Festo
Permission
c UL us - Recognized (OL)
Max. Vacuum
85
Display Type
LED
Material Note
RoHs compliant
Power-on Time
100%
Control Output
PNP
Fastening Type
with female thread
Seals Material
NBR
Valve Function
closed
Filter Material
PA
Filter Porosity
40
Piston Material
POM
Setting Options
Poti
Switch Function
Threshold comparator
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Silencer Material
POM
Vacuum Connection
G1/8
Measured Parameter
Relative pressure
Integrated Function
vacuum switch
Jet Nozzle Material
Nickel-plated brass
Protection Category
IP65
Pitch Dimension (mm)
15
Electrical Connection
Plug
Hand Assist Actuation
tentative
Installation Position
arbitrary
Measurement Principle
Piezoresistive
Ejector Characteristic
High vacuum
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
M5
Pneumatic Connection 3
Silencer integrated
Capture Nozzle Material
Nickel-plated brass
Filter Housing Material
PC
Medium Temperature (°C)
0 to 60
Operating Pressure (MPa)
0,15 to 0,8
Ambient Temperature (°C)
0 to 50
Settings Range Hysteresis
-0,05 to -0,005
Switching Element Function
NO contact
Switching Status Indicator
Visual
Reverse Polarity Protection
for all electrical connections
Max. Overload Pressure (bar)
5
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
21.6 to 26.4
Settings Range Threshold Value
-0,09 to 0
Construction Type Silencer Type
closed
Nominal Width Laval Nozzle (mm)
0,7
Nominal Operating Pressure (MPa)
0,6
Pressure Measurement Range (MPa)
0 to 0,1
Note On Operating And Control Medium
Oiled operation not possible
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für EMV
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Air Supply Time At Nominal Operating Pressure With Ejector Pulse (s)
0,59
EAN
4052568131487
Manufacturer
Festo
