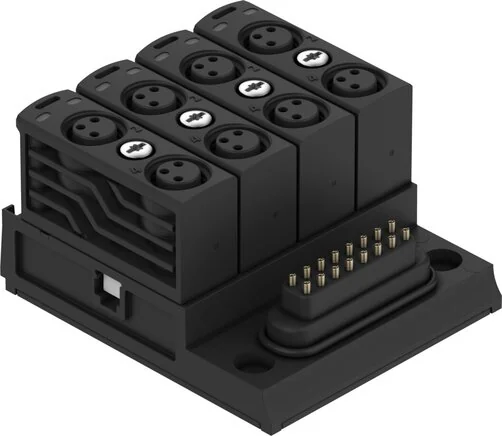

Festo - VAEM-XA-E-8E-P-V-8196633 - Input Module

SKU: festo-vaem-xa-e-8e-p-v-8196633

Browse all parts
Festo - VAEM-XA-E-8E-P-V-8196633 - Input Module

€162.95€139.27 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€162.95

Brand
Festo
KC-mark
KC-EMV
Permission
RCM mark
Switch Level
Signal 1: >= 11 V
Foil Material
Polyester
Material Note
RoHs compliant
Seals Material
NBR
O-ring Material
NBR
Quantity Inputs
8
Max. Line Length
30 m Eingänge
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Relative Humidity
5 - 95 %
Protection Category
IP65
Dimensions W x L x H
41,8 mm x 49,0 mm x 27,2 mm
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Electrical Connection
M8
Max. Number Of Inputs
8
Over-voltage Category
II
Plug Housing Material
PA
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Number Of Modules
6
Switching Logic Inputs
PNP (Positive switching)
Degree Of Contamination
2
Nominal Altitude Of Use
<= 2000 m NHN
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 70
Input Debouncing Time (ms)
3
Characteristic Curves Inputs
acc. to EN 61131-2
Power Blackout Bridging (ms)
10
Corrosion Resistance Class KBK
1 - low corrosion stress
Voltage Drop Sensor Supply (V)
1
Max. Tightening Torque Plug (Nm)
0,6
Electrical Connection 1, Function
Digital input
Information About Protection Category
In mounted condition
Diagnostics Per Internal Communication
Kurzschluss/Überlast Power OUT PL
Electrical Connection 1, Fastening Type
Screw lock
Permissible Voltage Fluctuation Of Load
± 10 %
Electrical Connection 1, Connection Type
socket / container / ….
Fuse Protection Of Inputs (Short Circuit)
Internal electronic fuse Per module
Electrical Connection 1, Connection Pattern
991871
Electrical Connection 1, Occupied Pin / Wire
24
Max. Cumulative Current Inputs Per Module (A)
0,2
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Number Of Pins / Wires
3
Electrical Connection 1, Tightening Torque (Nm)
0,7
Electrical Isolation Of Inputs Between Channels
no
Permitted Voltage Oscillations Electronics/sensors
± 25 %
Behaviour After End Of Overload Of The Sensor Supply
Automatische Wiederkehr (default)
Nominal Operating Voltage DC Electronics / Sensor (V)
24
Intrinsic Power Input Operating Voltage Electronics/sensors
typisch 4 mA
Manufacturer
Festo
