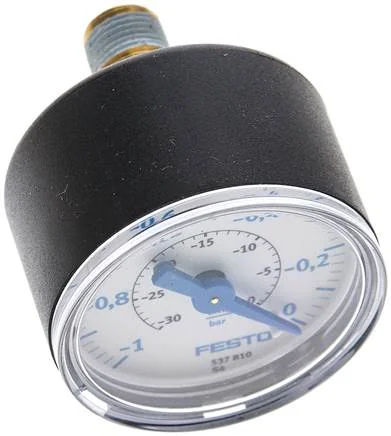

Festo - VAM-40-V1/0-R1/8-EN-537810 - Vacuum Gauge

SKU: festo-vam-40-v1-0-r1-8-en-537810

Browse all parts
Festo - VAM-40-V1/0-R1/8-EN-537810 - Vacuum Gauge

€39.41€33.68 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€39.41

Brand
Festo
Scale
Bar (external), Double scale, inch Hg (internal) / psi (internal)
Stud Material
Brass
Fastening Type
Screwable
Housing Material
ABS
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Based On Standard
DIN EN 837-1
Seal Type On Stud
coating
Connection Position
Back side centred
Construction Set Up
Pipe spring pressure gauge
Display Range (bar)
-1
Display Range (inHg)
-30
Material Information
RoHs compliant
PS
Pneumatic Connection
R1/8
Installation Position
arbitrary
Medium Temperature (°C)
-20 to 60
Operating Pressure (bar)
-1
Factor Alternating Strain
0.66
Measurement Precision Class
2,5
Nominal Size Pressure Gauge
40
Corrosion Resistance Class KBK
0 - No corrosion stressing
Information About Operating And Control Medium
Oiled operation possible (required in further operations)
0.75
EAN
4052568049584
Manufacturer
Festo
