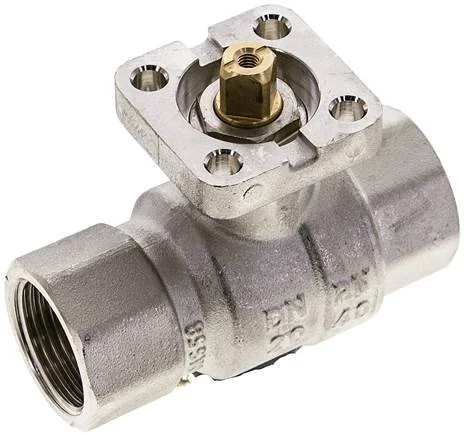

Festo - VAPB-3/4-F-40-F03-534305 - Ball Valve

SKU: festo-vapb-3-4-f-40-f03-534305

Browse all parts
Festo - VAPB-3/4-F-40-F03-534305 - Ball Valve

€41.59€35.55 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€41.59

Brand
Festo
Medium
neutrale Flüssigkeiten
Flow Kv
41
Ball Material
hartverchromt
Material Note
RoHs compliant
Actuation Type
Mechanical
Fastening Type
pipe installation
Flow Direction
Reversible
Seals Material
PTFE
Shaft Material
Brass
Housing Material
brass, nickel-plated
Nominal Width DN
20
Based On Standard
ISO 5211
Sealing Principle
Soft
Fitting Connection
Rp3/4
Construction Set Up
2-way ball valve
Inner Diameter (mm)
20
Nominal Pressure PN
40
Material - Seal Seat
PTFE
Material Number Ball
CW617N
Installation Position
arbitrary
Material Number Shaft
CW614N
LABS (PWIS) Conformity
VDMA24364-Zone III
Flange Drilling Pattern
F03
Material Number Housing
CW617N
Medium Temperature (°C)
-20 to 150
Switching Position Display
Carriage direction = flow direction
Corrosion Resistance Class KBK
1 - low corrosion stress
Break-out Torque At A Pressure Difference Nominal Fitting Pressure PN (Nm)
6,0
Break-away Torque At A Differential Pressure Of 1 MPa (10 bar, 145 psi) (Nm)
5,1
EAN
4052568048860
Manufacturer
Festo
