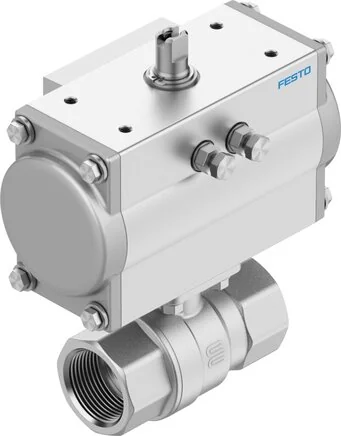

Festo - VAPB-A-1-F-40-F0304-PA20-8191921 - Ball Valve Unit

SKU: festo-vapb-a-1-f-40-f0304-pa20-8191921

Browse all parts
Festo - VAPB-A-1-F-40-F0304-PA20-8191921 - Ball Valve Unit

€375.43€320.88 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€375.43

Brand
Festo
Medium
weitere Durchflussmedien auf Anfrage
Flow Kv
70
Ball Material
hartverchromt
Material Note
RoHs compliant
Actuation Type
pneumatic
Fastening Type
pipe installation
Flow Direction
Reversible
Seals Material
PTFE
Shaft Material
Brass
Housing Material
brass, nickel-plated
Nominal Width DN
25
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Based On Standard
ISO 5211
Sealing Principle
Soft
Fitting Connection
Rp1
Construction Set Up
Schwenkantrieb
Nominal Pressure PN
40
Material - Seal Seat
PTFE
Material Number Ball
CW617N
Installation Position
arbitrary
Material Number Shaft
CW614N
LABS (PWIS) Conformity
VDMA24364-Zone III
Flange Drilling Pattern
F0304
Material Number Housing
CW617N
Medium Temperature (°C)
-10 to 200
Operating Pressure (MPa)
0,55 to 0,8
Switching Position Display
Carriage direction = flow direction
Corrosion Resistance Class KBK
1 - low corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Break-out Torque At A Pressure Difference Nominal Fitting Pressure PN (Nm)
8,5
EAN
4052568715823
Manufacturer
Festo
