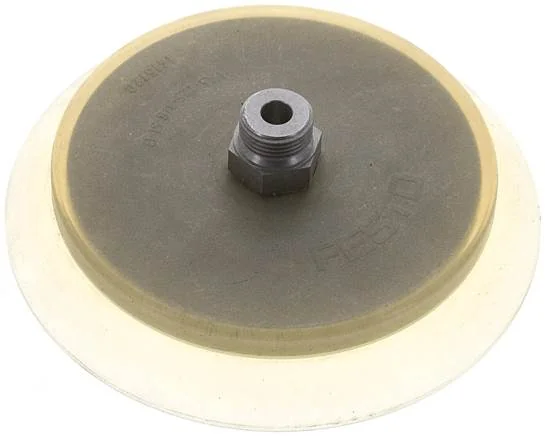

Festo - VAS-125-3/8-SI-B-1415120 - Vacuum Sucker

SKU: festo-vas-125-3-8-si-b-1415120

Browse all parts
Festo - VAS-125-3/8-SI-B-1415120 - Vacuum Sucker

€111.95€95.68 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€111.95

Brand
Festo
Colour
transparent
Material Note
RoHs compliant
Stud Material
Aluminium wrought alloy
Fastening Type
Via vacuum connection
Shore Hardness
60 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
Round flat
Vacuum Connection
G3/8
Food Compatibility
See expanded material information
Nominal Width (mm)
7
Suction Cup Volume
79,1
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
VMQ (Silicone)
LABS (PWIS) Conformity
VDMA24364-Zone III
Operating Pressure (MPa)
-0,095 to 0
Ambient Temperature (°C)
-40 to 200
Suction Cup Diameter (mm)
125
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Effective Suction Diameter (mm)
112,8
Height Balance Suction Cup (mm)
6,0
Nominal Operating Pressure (MPa)
-0,07
Holding Force For Nominal Operating Pressure (N)
700,00
EAN
4052568105778
Manufacturer
Festo
